The document is a report by ML Traffic Engineers to review and provide design input for vehicle access and car parking layout for two proposed townhouses at 20 Christa Avenue, Burwood East, Melbourne, Victoria. Key points include:
- Garage Dimensions:
- Unit 1 garage: 5150mm door opening, 5875mm width.
- Unit 2 garage: 5325mm door opening, 5925mm width.
- Driveway Alignment:
- The curved driveway near the mailbox has been optimized for easier maneuvering into and out of Unit 2’s garage. The existing crossover is retained due to constraints from tree protection zones and a cable stay within the verge.
- Car Spacing:
- Minimum spacing of 585mm between cars or between car and wall is maintained, with larger clearances provided for tighter turning angles.

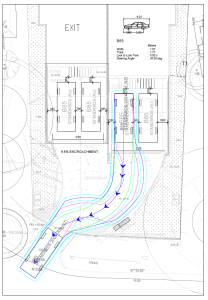

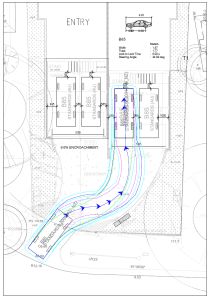

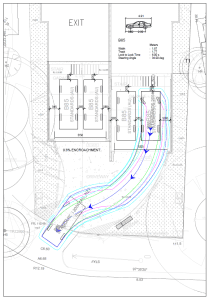

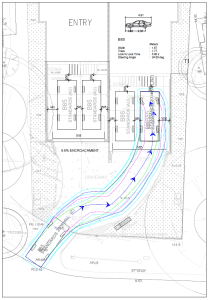

- Swept Path Assessment:
- B85 car AutoTURN swept path assessments confirm satisfactory one-pass forward entry and reverse egress.
- Other Details:
- Retaining walls are planned with heights ranging from 600mm to 1500mm.
- Tree protection zones (TPZ) are noted for trees in adjacent properties.
- Landscape details are referenced in separate drawings.
