Austroads Turn Lane Warrants: The Developer’s Guide to Intersection Design (2026)

What if a single oversight in your traffic report cost your project an extra A$120,000 or much more in unplanned roadworks? It happens more often than you think, especially when developers rely on outdated interpretations of intersection requirements. You’ve likely felt the frustration of Council delays or struggled to make sense of the dense Austroads Turn Lane Warrants charts that dictate whether you need a Basic (BAR), Auxiliary (AUR), or Channelised (CH) treatment. One small traffic volume shift can trigger a massive infrastructure requirement. It stalls your progress instantly.

We are traffic engineers servicing Sydney, Gold Coast, Brisbane, Sunshine Coast, Melbourne, Hobart, Adelaide, Perth and Darwin.

We agree that navigating these technicalities shouldn’t feel like a gamble with your project’s profit margins. This guide is designed to help you master the Austroads Turn Lane Warrants so you can ensure your development application is safe, compliant, and cost-effective from the start. You’ll gain a clear understanding of the 2026 warrant thresholds and the expert justification needed to secure DA approval without over-engineering your site. We’re breaking down exactly how to read those intimidating graphs and use them to your advantage during Council negotiations.

Table of Contents

• What are Austroads Turn Lane Warrants and Why Do They Matter?
• The 3 Main Types of Right-Turn Warrants: BAR, AUR, and CH
• Calculating the Thresholds: Speed, Volume, and Geometry
• Left-Turn Warrants (BAL and AUL): Don’t Overlook the Exit
• Navigating Turn Lane Requirements with ML Traffic Engineers

What are Austroads Turn Lane Warrants and Why Do They Matter?

Austroads Turn Lane Warrants are the technical benchmarks traffic engineers use to decide if your project requires a dedicated left or right-turn pocket. These aren’t just suggestions; they’re mandatory standards found in the Austroads Guide to Traffic Management Part 6. If you’re planning a new service station, a 50-unit residential complex, or a child care centre, these warrants dictate whether you can use a simple driveway or if you must build a concrete-curbed turn lane. This assessment is the foundation of any professional traffic impact statement. It ensures that the peak body, Austroads, maintains a uniform standard across all Australian road networks.

To better understand this concept, watch this helpful video:

The primary goal of these warrants is to balance road safety with traffic flow efficiency. Rear-end collisions account for roughly 25% of all urban crashes in Australia. By forcing turning vehicles into a dedicated lane, we remove them from the through-traffic stream. This reduces the risk of high-speed impacts. For a developer, these warrants represent the difference between a standard entry and a major infrastructure project. In the 2026 update of the standards, the focus has shifted toward stricter compliance to handle increasing urban density.

The Impact on Your Development Application

Council assessors use Austroads Turn Lane Warrants to judge the safety of your proposed site access. If your traffic report ignores these warrants, you risk an immediate DA refusal or an expensive Request for Further Information (RFI). We’ve seen projects delayed by 180 days because the initial design didn’t account for a required right-turn slot. Early assessment can save you upwards of A$45,000 in redesign fees and civil works by identifying these requirements before you lodge with Council. It’s much cheaper to move a driveway on paper than it is to relocate a power pole and widen a road in reality.

Key Factors Influencing a Warrant

Three primary variables determine if a warrant is met. First is the major road traffic volume (QM) combined with the volume of turning vehicles (QR or QL). We use specific nomographs to plot these numbers. Second is the design speed of the road. A 10km/h increase, such as moving from a 70km/h zone to an 80km/h zone, can increase the required storage length by 15 metres. Finally, we look at the site’s history. If there’s a record of three or more accidents at the location within a 5-year period, or if sight-line issues exist, Council may mandate a turn lane even if the traffic volumes are low. These technical details are why you need a consultant who does the work they quote for.

• QM: The total through-traffic on the main road during peak hours.
• QR/QL: The specific number of vehicles turning right or left into your site.
• Design Speed: The 85th percentile speed, which dictates braking distances.
• Upgrade Costs: A basic auxiliary lane can cost A$85,000, while channelised treatments often exceed A$250,000.

Getting the Austroads Turn Lane Warrants calculation right the first time is non-negotiable. It protects your budget and ensures your site access remains safe for every future visitor. Our senior engineers handle these assessments personally to ensure your DA moves through the system without technical hitches.

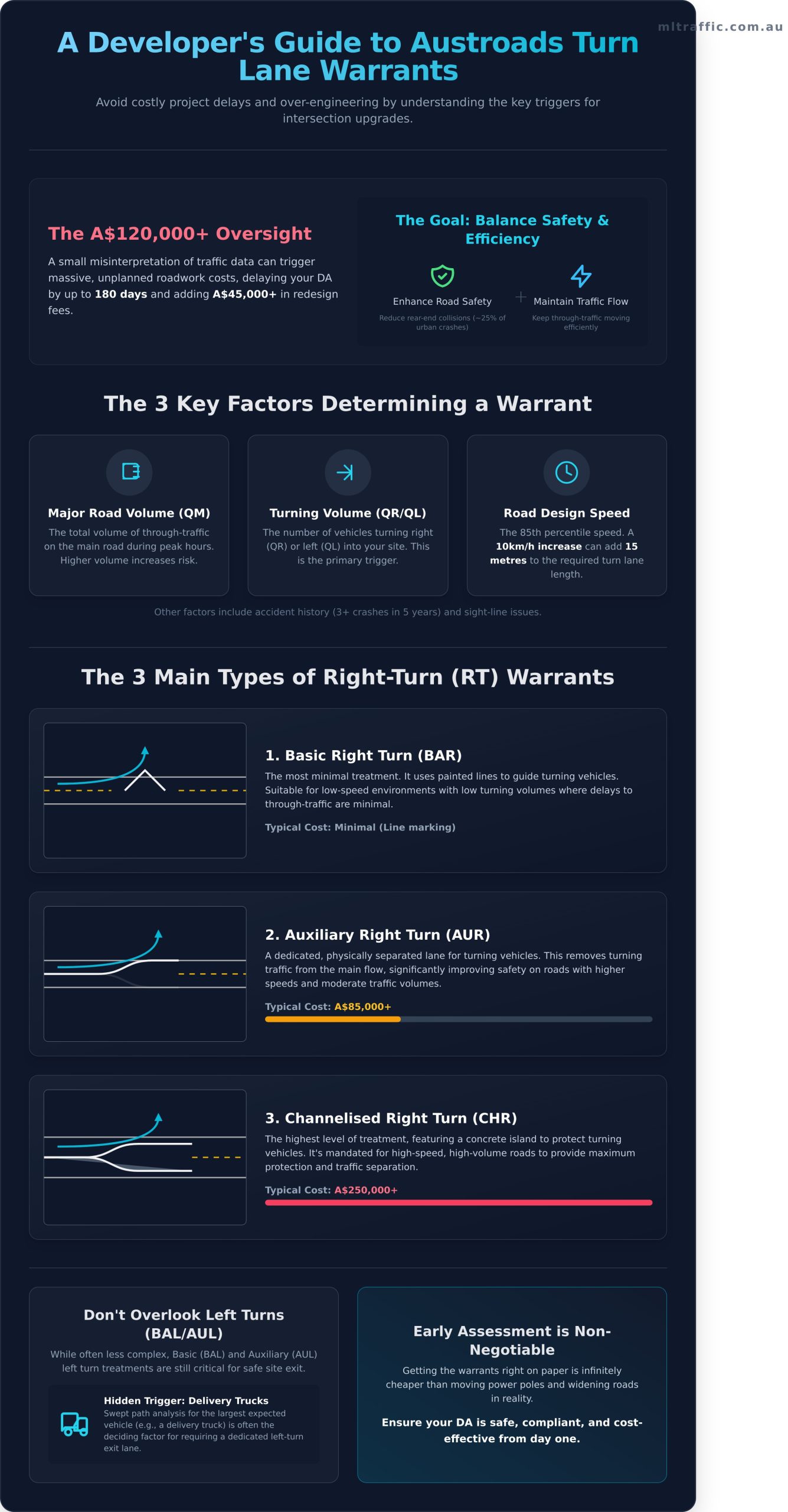

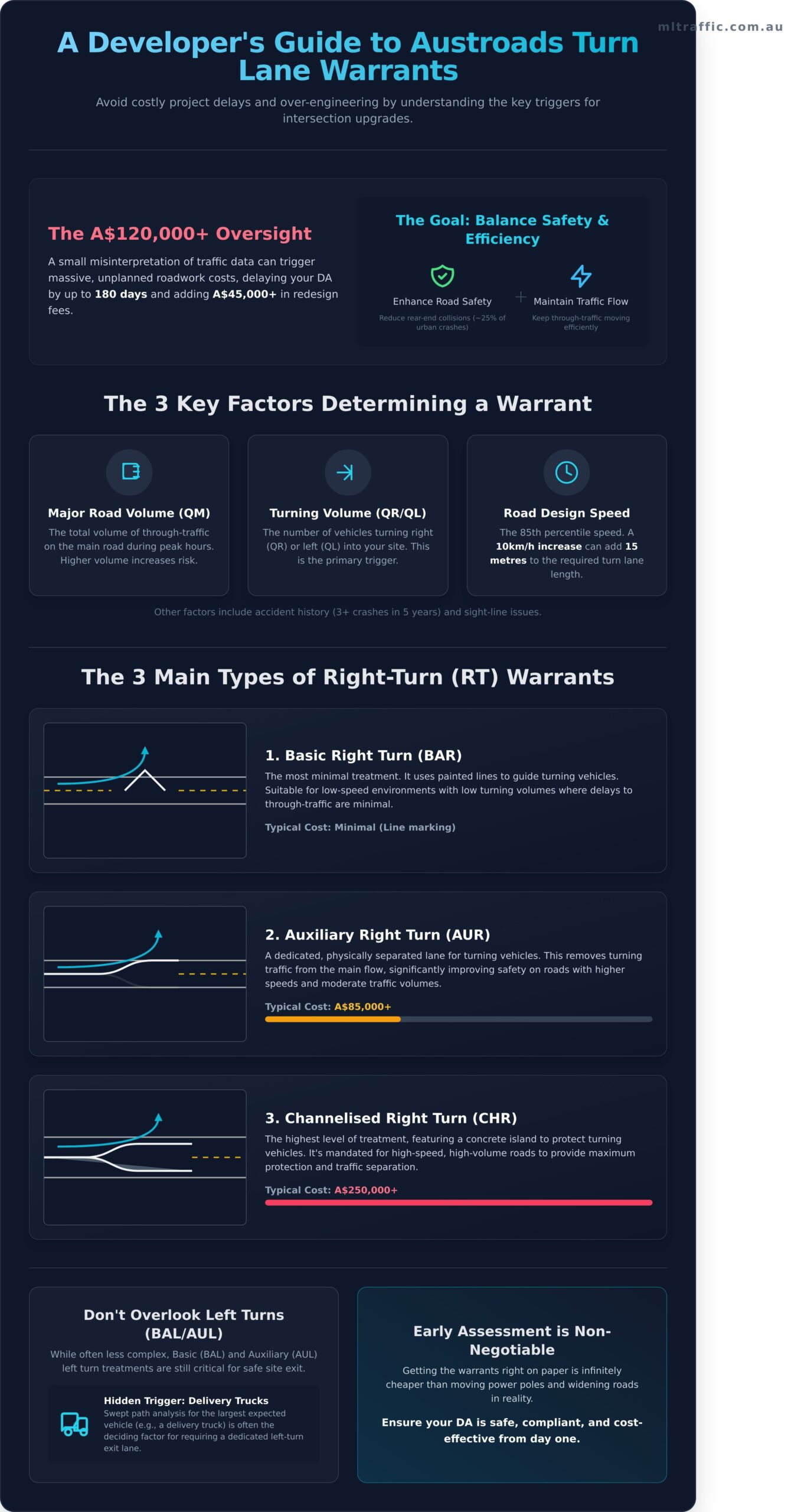

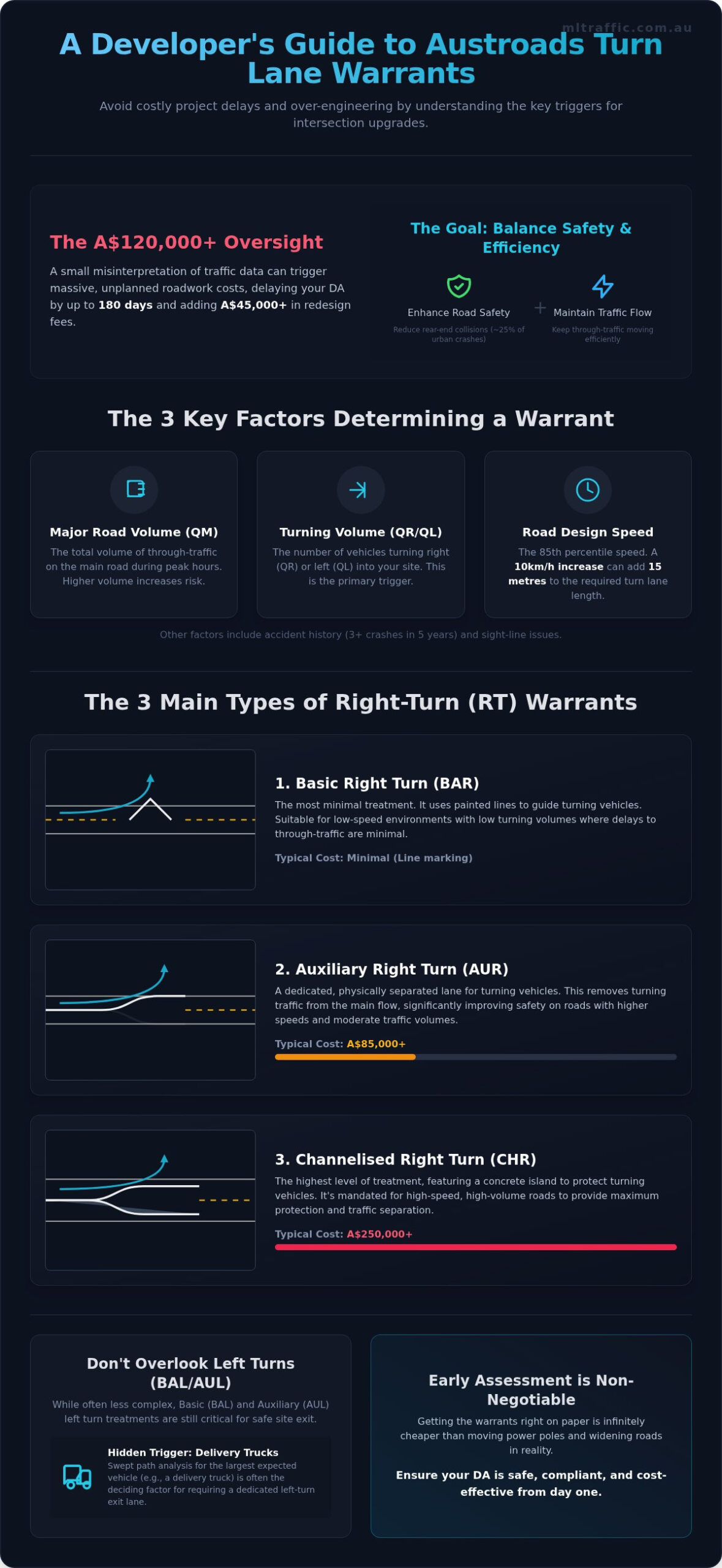

The 3 Main Types of Right-Turn Warrants: BAR, AUR, and CH

Selecting the right intersection treatment isn’t a guessing game. It’s a precise calculation based on traffic volume, road speed, and safety risk. Austroads categorises these into three distinct levels: BAR, AUR, and CH. Each level adds a layer of protection for turning vehicles and helps maintain the flow of through traffic. Understanding these differences is the first step in ensuring your development application meets council requirements without over-engineering the site. It’s about finding the balance between safety and construction costs.

• Basic Right Turn (BAR): The most minimal treatment. Turning vehicles wait within the through lane. It relies on low traffic volumes to avoid bottlenecks and rear-end crashes.
• Auxiliary Right Turn (AUR): This adds a short lane or a widened shoulder. It allows through traffic to bypass a stopped vehicle on the left side, maintaining momentum.
• Channelised Right Turn (CH): A fully dedicated and often physically sheltered lane. It’s the gold standard for high-speed or high-volume corridors, providing a safe haven for turning motorists.

Technical precision is vital here. Within these categories, engineers must distinguish between “Short Lane” and “Full Length” requirements. A Short Lane (S) might only cater for one or two cars, typically 15 to 25 metres in length. A Full Length (FL) lane includes a dedicated deceleration zone and enough storage for peak-hour queues. By applying the Austroads Guide to Traffic Management Part 6, we determine exactly which configuration fits your specific traffic flow data and prevents unnecessary land take.

When a BAR Treatment is Sufficient

BAR treatments are usually acceptable for low-impact sites like small residential subdivisions or minor commercial units. In rural 100km/h zones, you can often justify a BAR if your right-turn volume stays below 5 to 10 vehicles per hour. For urban 60km/h zones, this threshold might rise to 20 or 25 vehicles. Safety remains the priority. If sight lines are poor, we often recommend a passing shoulder even if the Austroads Turn Lane Warrants don’t strictly demand it. This 3.0m to 3.5m wide shoulder prevents collisions by giving through-drivers a clear path around waiting cars.

Moving to AUR and CH: High-Stakes Design

Once your project hits a certain scale, basic treatments won’t cut it. Trigger points for AUR lanes drop as road speeds increase. In a 100km/h zone, you only need a handful of turning vehicles to trigger a requirement for an auxiliary lane. CH treatments are standard for major shopping centres, industrial estates, or any site where heavy vehicles make up more than 5% of the traffic mix. These designs require significant land. A CH lane often needs a 50m taper followed by a 100m or 150m storage lane. This drastically changes your site’s frontage and land-use efficiency.

If you’re unsure which category your project falls into, getting a professional traffic assessment early can save you thousands in redesign costs. We’ve seen projects delayed by 12 weeks because the initial plans didn’t account for the 3.5m widening required by a CH treatment. Precise application of Austroads Turn Lane Warrants ensures your site remains compliant and functional from day one. We focus on getting the numbers right so your development moves through the approval process without technical hitches.

Calculating the Thresholds: Speed, Volume, and Geometry

Determining whether a development needs a dedicated turn lane involves more than a simple traffic count. We use specific Austroads warrant charts to plot the Major Road traffic volume (QM) against the Turning Road traffic volume (QR). This mathematical relationship dictates the level of treatment required, ranging from basic flares to fully channelised intersections. We look for the point where these two variables intersect on the design curves to identify the specific treatment type, such as a Basic Left Turn (BAL) or a Channelised Right Turn (CHR). Using the Austroads Guide to Traffic Management Part 6, we ensure every recommendation aligns with national safety standards and local council expectations.

Data quality is the most significant factor in these calculations. We prioritize Peak Hour data over Average Daily Traffic (ADT) because traffic issues are rarely distributed evenly across a 24-hour period. Relying on ADT alone can lead to under-designed intersections that fail during the morning or afternoon rush. If a site has an ADT of 5,000 vehicles but 15% of that volume arrives within a single hour, the warrant for a turn lane becomes much more urgent. We analyze the highest 15-minute surge within that peak hour to ensure the design handles real-world pressure.

Through-traffic percentage is a critical, often overlooked variable in the assessment process. High volumes of through-traffic increase the risk of rear-end collisions when a vehicle slows down to turn. If more than 10% of the traffic is through-movement on a high-speed corridor, the “conflict points” increase exponentially. We also account for heavy vehicles like trucks and B-doubles. These vehicles don’t just take up more physical space; they have slower deceleration and acceleration profiles. A single heavy vehicle typically equates to 2.5 passenger car units (PCUs) when calculating the required storage length of a turn lane. If your site expects 8% heavy vehicle traffic, the turn lane must be significantly longer to prevent trucks from overhanging into the through-lane and creating a hazard.

Urban vs. Rural Speed Environments

Austroads Turn Lane Warrants shift dramatically once the design speed reaches or exceeds 70km/h. In rural environments, high speeds mean drivers have less time to react to stationary or slowing vehicles. We apply a Safe System approach here, which often results in stricter warrants for protected turn lanes to minimize high-energy impacts. Conversely, urban environments often face severe spatial constraints. In these cases, we might negotiate “reduced” warrants with local councils if the operating speed is low and the pedestrian activity is high. We justify these variations by looking at the specific geometry and crash history of the 50km/h or 60km/h zone.

The Role of Gap Acceptance and Sight Distance

Volume isn’t the only trigger for infrastructure upgrades. If the traffic volume is low but the geometry is poor, a turn lane may still be necessary. We evaluate gap acceptance, which is the “window” of time a driver needs to safely cross or join a traffic stream. If the gaps are too short or infrequent, drivers take risks. This is where sight lines become the priority. Safe Intersection Sight Distance (SISD) provides sufficient distance for a driver to perceive a conflict and bring their vehicle to a complete stop to prevent a right-angle crash. Even if the Austroads Turn Lane Warrants for volume aren’t met, poor SISD often necessitates a turn lane to remove turning vehicles from the path of high-speed through-traffic, ensuring the intersection remains functional and safe.

Left-Turn Warrants (BAL and AUL): Don’t Overlook the Exit

Left-turn treatments are frequently the most misunderstood component of a development application. While many developers focus on right-turn queues, the Austroads Turn Lane Warrants for left turns are what actually preserve the “flow” of the major road. If you ignore these, you risk a council refusal based on safety and through-traffic disruption. These warrants ensure that a vehicle slowing down to enter your site doesn’t force the traffic behind it to brake aggressively, which is the primary cause of rear-end collisions in 60km/h and 80km/h zones.

The design isn’t just about the turn itself; it’s about the approach. Deceleration length is the distance required for a vehicle to transition from the posted speed limit to a safe turning speed. If your design provides 15 metres when the standard requires 35 metres based on a 70km/h design speed, you’re creating a permanent traffic hazard. At ML Traffic Engineers, we’ve seen projects delayed by months because the initial plans failed to account for these specific Austroads requirements.

BAL: The Standard for Most Driveways

A Basic Left Turn (BAL) treatment is the entry-level requirement for most Australian driveways. It’s more than just a curved kerb. In urban settings, councils demand a geometry that allows for a smooth exit from the through-lane. A simple 6-metre radius often fails to accommodate a 12.5-metre Heavy Rigid Vehicle (HRV). This is why linking your design to a Vehicle Swept Path Analysis is critical. We use AutoTURN software to prove your delivery trucks won’t mount the kerb or swing into the opposite lane during entry. Without this proof, your BAL design is just a guess.

AUL: When High Turning Volumes Trigger a Dedicated Lane

When traffic volumes hit specific thresholds, you must move from a BAL to an Auxiliary Left Turn (AUL). The Austroads Turn Lane Warrants define these triggers based on the major road volume (Qm) and the turning volume (Ql). For instance, if your major road carries 1,200 vehicles per hour and your site generates 40 left-turning movements, a standard BAL won’t satisfy safety audits. You need a dedicated lane. An AUL prevents “nose-to-tail” accidents during peak periods by physically separating slowing vehicles from the main traffic stream. These designs must also integrate with multi-modal infrastructure, such as 1.5-metre wide cycling lanes and 1.2-metre footpaths, to ensure turns don’t create blind spots for vulnerable road users.

• Swept Path Issues: Large 19-metre semi-trailers often trigger the need for wider AUL entries to prevent “off-tracking” into adjacent lanes.
• Compliance: Following AS 2890.1 and Austroads Part 4 is non-negotiable for RPEQ certification.
• Safety: Proper deceleration lengths reduce the speed differential between turning and through-traffic, a key metric in road safety audits.

It’s vital to get these technicalities right during the TIA stage. We’ve been trading since 2005 and have handled over 10,000 sites, so we know exactly how to balance council requirements with your site’s physical constraints. Don’t let a simple left-turn warrant stall your project at the final hurdle.

Need a compliant turn lane design for your development? [Contact our senior traffic engineers today](https://www.mltraffic.com.au) for an authoritative assessment that meets all Austroads standards.

Navigating Turn Lane Requirements with ML Traffic Engineers

Applying Austroads Turn Lane Warrants isn’t just a matter of looking at a graph and picking a treatment. It requires a deep understanding of how traffic flows in the real world. Our senior engineers analyze your specific site data to find the most efficient solution that satisfies safety requirements without over-engineering the project. This approach saves you money on construction costs. We’ve seen cases where a simple BAR/BAL treatment was sufficient when a council initially requested a much more expensive CHR. It’s about finding that balance between safety and project feasibility through technical precision.

We operate on a simple principle: The traffic consultant who provides the quote, does the work. You won’t be passed off to a junior graduate once the contract is signed. This ensures that the person defending your project in front of Council or State Road Authorities like Transport for NSW (TfNSW) or the Department of Transport and Planning (DTP) in Victoria is the same person who conducted the analysis. We use evidence-based reports to negotiate. If the data shows a specific warrant isn’t met, we’ll prove it with hard numbers. This direct accountability is why developers trust us with their most complex sites.

A professional Traffic Impact Assessment (TIA) is your most powerful tool for DA approval. It serves as the bridge between your vision and the regulator’s requirements. We don’t just fill out templates. We provide genuine analysis that addresses potential bottlenecks and safety concerns before they become grounds for refusal. Our reports are designed to be bulletproof under scrutiny from government departments. We ensure every Austroads Turn Lane Warrants assessment we conduct is backed by current traffic counts and rigorous modelling.

Our Hands-On Approach to Your DA

You get direct access to our principals, Michael Lee and Benny Chen, for every single assessment. This level of seniority is rare in larger firms where directors rarely see the raw data. Since 2005, we have supported over 10,000 sites across Australia with compliant designs that pass regulatory hurdles. We don’t just provide a report; we provide a strategy for approval. You can learn more about our 30+ years of experience and how our meticulous attention to detail speeds up the DA process. We’ve worked on everything from small childcare centres and temples to massive industrial warehouses, so we know exactly what councils are looking for in a compliant design.

Get Started on Your Traffic Assessment

Engaging a traffic engineer before you finalize your site layout is a smart move. If you wait until the design is locked in, you might find that an Austroads-mandated turn lane requires land you’ve already allocated for buildings or parking. We start by gathering precise peak hour data for your specific location. This ensures the Austroads Turn Lane Warrants are applied to actual conditions, not just generic estimates. We use this data to model various scenarios, ensuring your entrance and exit points work perfectly. Contact us today for a direct quote and expert advice to keep your project moving forward without unnecessary delays or expensive redesigns.

Secure Your DA Approval with Precise Intersection Design

Navigating the technical complexities of Austroads Turn Lane Warrants doesn’t have to stall your development project. You’ve seen how specific BAR, AUR, and CH warrants dictate right-turn requirements, while BAL and AUL treatments handle critical left-turn safety. Getting these volume and speed calculations right from the start prevents costly redesigns and delays during the DA process. Since 2005, ML Traffic Engineers have specialized in these technical assessments to keep Australian developments moving forward without the bureaucracy. We’ve successfully assessed over 10,000 sites across the country, ensuring every intersection design meets rigorous safety thresholds and Australian Standards.

When you partner with us, you don’t deal with junior staff or gatekeepers. You get direct access to senior engineers Michael Lee and Benny Chen. We operate on a simple promise: the traffic consultant who provides the quote, does the work. It’s a hands-on, accountable approach that delivers reliable results for your transport planning needs. Don’t leave your intersection design or council approval to chance. Let our decades of experience work for you. Get a Traffic Assessment Quote from the Experts at ML Traffic today to ensure your site is safe, compliant, and ready for construction.

Frequently Asked Questions

What is the difference between a BAR and an AUR turn lane?

A BAR treatment uses a widened shoulder to let through-traffic pass a turning vehicle on the left, while an AUR is a dedicated short turn lane. Austroads Guide to Road Design Part 4A specifies BAR treatments for lower volume rural roads. AUR treatments provide a higher level of safety by physically separating turning traffic into a defined lane. We typically see Council requirements shift from BAR to AUR when through-traffic exceeds 150 vehicles per hour.

How do I know if my development needs a channelised right-turn (CH) lane?

You determine the need for a channelised right-turn (CH) lane by plotting your peak hour traffic volumes on the Austroads design charts. These warrants consider the major road volume, the turning volume, and the design speed of the road. If your project sits in the CH zone of the graph, a full lane is mandatory. For roads with speeds over 80 km/h, the threshold for a CH lane is significantly lower than on 60 km/h urban streets.

Can I avoid building a turn lane if my traffic volumes are just below the warrant threshold?

You can potentially avoid a turn lane if current volumes are below the threshold, but you must also account for 10 percent annual traffic growth over a 10 year horizon. Road authorities don’t look at today’s data in isolation. They require a forecast to ensure the intersection remains safe for the future. If your peak hour volume is 5 percent below the warrant, we can often present a technical case to Council that a lower-order treatment suffices.

Does Austroads Part 6 apply to all states in Australia?

Austroads Part 6 serves as the national standard across Australia, but states like Queensland and New South Wales apply their own specific supplements. For instance, some state road authorities have their own guidelines that sometimes override the national Austroads Turn Lane Warrants. It’s vital to check the local state variations. We’ve managed over 10,000 sites across different jurisdictions and always cross-reference the national warrants with local state-specific requirements.

What traffic volume data is required to perform a turn lane warrant assessment?

To perform a warrant assessment, you need 15-minute interval turning movement counts for the AM and PM peak hours. This data must include the through-traffic on the major road and the specific number of vehicles turning into your site. We typically use 7-day pneumatic tube counts or video surveys to get an accurate 85th percentile speed. Without this precise data, Council will likely reject your application for being technically incomplete or unreliable.

How much extra land is typically required for a dedicated auxiliary turn lane?

A dedicated auxiliary lane typically requires an additional 3.0 to 3.5 metres of road width. You also have to factor in the taper length, which can extend 50 to 100 metres depending on the 60 km/h or 100 km/h design speed. In rural areas, this often means acquiring land from the frontage of your development. We’ve seen projects where land requirements increased by 400 square metres just to accommodate the required deceleration length and taper.

What happens if a turn lane is warranted but there isn’t enough road width to build it?

If the road isn’t wide enough, you’re usually responsible for the civil costs of widening the pavement or paying a developer contribution. This might involve relocating utility poles or modifying drainage, which can cost upwards of A$50,000 per 10 metres of widening. If physical constraints make widening impossible, we negotiate with Council for alternative safety measures. Sometimes, a “Left In, Left Out” restriction is the only viable path when the Austroads Turn Lane Warrants can’t be met.

Can a traffic engineer help me argue against a turn lane requirement from Council?

We can help you argue against a turn lane by conducting a detailed gap acceptance analysis or a site-specific safety audit. If the warrants are only slightly exceeded, we look for mitigating factors like low crash history or existing sight distance advantages. Our principals, Michael Lee and Benny Chen, deal directly with Council engineers to find a balance. We focus on providing a technical justification that satisfies safety standards without forcing you into unnecessary A$100,000 infrastructure spends.
