A single miscalculation in your electric vehicle charging station layout can trigger a costly Request for Information (RFI) or a flat DA rejection from council. With over 10,000 sites assessed by our team since 2005, we’ve seen how often projects stall because a designer prioritised bay count over the 2.4-metre shared zone requirements or the reality of a B85 vehicle’s turning circle. You likely feel the pressure of balancing maximum yield with the rigid spatial demands of AS 2890.6; it’s a difficult middle ground to find when conflicting information is the industry norm.
This guide ensures you master the technical requirements and spatial strategies needed to design a compliant, efficient layout that passes swept path analysis on the first submission. We’ll provide a clear roadmap for 2026 compliance, focusing on accessibility standards and the specific maneuvering clearances councils demand. You’ll learn exactly how to configure your site to reduce friction with local authorities and secure your approval without sacrificing valuable floor area.
Key Takeaways
- Understand why EV infrastructure has shifted from an optional amenity to a mandatory requirement under the 2026 National Construction Code (NCC).
- Learn how to apply AS 2890.1 and AS 2890.6 standards to design an electric vehicle charging station layout that satisfies council width and shared zone mandates.
- Compare the spatial efficiency of various configurations, including 90-degree and back-to-back islands, to maximize your site’s parking yield.
- Master Swept Path Analysis using AutoTURN to ensure B85 and B99 design vehicles can maneuver seamlessly through your proposed layout.
- Discover the advantage of direct engineer accountability to turn complex technical requirements into a successful, approved Development Application.
Table of Contents
- The Evolution of Electric Vehicle Charging Station Layouts in 2026
- Core Compliance: AS 2890 Standards for EV Layouts
- Comparing EV Layout Configurations: Which One Fits Your Project?
- Swept Path Analysis: Ensuring Seamless Maneuvering
- Securing Your Approval: The ML Traffic Advantage

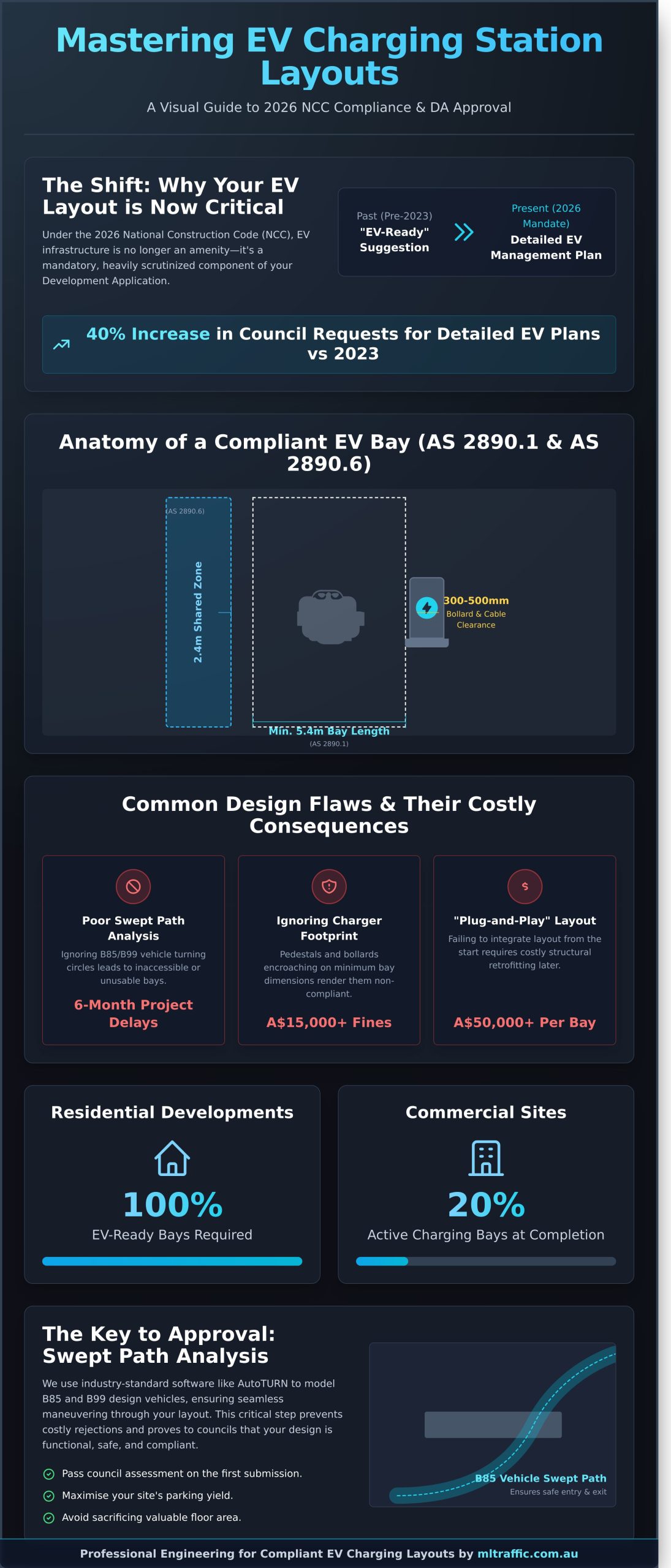

The Evolution of Electric Vehicle Charging Station Layouts in 2026
In 2026, your Development Application (DA) lives or dies by its parking strategy. The days when developers could treat charging as a secondary thought are over. Councils across Sydney, Melbourne, and Brisbane now scrutinize how vehicles move around chargers with the same intensity they apply to fire safety or structural integrity. If your electric vehicle charging station layout doesn’t account for vehicle swept paths and pedestrian clearances from the start, you’re looking at a refusal or a costly redesign during the construction phase.
The shift happened because the National Construction Code (NCC) moved from suggesting “EV-readiness” to mandating specific infrastructure. We’ve seen a 40% increase in council requests for detailed EV management plans compared to 2023. This isn’t just about sticking a box on a wall. It’s about how that box changes the geometry of the parking bay. Integrating a modern electric vehicle charging station into a tight basement requires more than just an extra plug. It requires a spatial assessment to ensure the site remains compliant with Australian Standards AS 2890.1.
A traffic engineer bridges the gap between electrical capacity and physical space. While an electrician focuses on the load, we focus on the maneuver. If a charging bollard reduces a bay’s effective width by 300mm, that bay might no longer be legal. We’ve seen projects delayed by six months because the initial electric vehicle charging station layout ignored the physical footprint of the hardware and the necessary cable reach. You don’t want to be the developer breaking into fresh concrete to move a pillar because a Tesla couldn’t swing into the spot safely.
Meeting the 2026 DA Requirements
Current council expectations in major Australian cities have shifted toward 100% EV-ready residential developments. For commercial sites, we’re seeing mandates for 20% active charging bays at the time of completion. Your Traffic Impact Statement must now include specific data on how these bays affect peak-hour internal circulation. State targets, like the NSW Electric Vehicle Strategy, mean that if your site doesn’t demonstrate a clear path to 100% electrification, it’s considered a “stranded asset” by many institutional lenders and planning panels.
Why Design Matters More Than Hardware
Hardware is easy to swap, but layout is permanent. A “plug-and-play” approach often leads to “dead zones” where cables can’t reach the car’s inlet or, worse, create trip hazards for pedestrians. Retrofitting a poorly planned basement can cost upwards of A$50,000 per bay in structural modifications. Professional layout design ensures your site’s value stays high. It’s about future-proofed traffic engineering. We ensure the chargers are positioned so they don’t impede the 85th percentile vehicle’s turning circle. This meticulous planning prevents the A$15,000 fines associated with non-compliant parking dimensions while ensuring a seamless user experience for every tenant.
- Compliance: Alignment with NCC 2025/2026 standards is non-negotiable for DA approval.
- Safety: Proper bollard placement prevents vehicle-to-charger collisions.
- Value: Efficient layouts maximize the number of usable bays in high-density developments.
- Accountability: The traffic consultant who provides the quote does the work, ensuring no technical detail is lost in a corporate chain.
Don’t let a simple spatial error derail a multi-million dollar project. We’ve handled over 10,000 sites and understand exactly what the RTA and local councils look for in a traffic report. It’s about getting the technicalities right the first time. Professional engineering isn’t an expense; it’s an insurance policy against project failure.
Core Compliance: AS 2890 Standards for EV Layouts
Compliance with Australian Standards isn’t a suggestion; it’s the baseline for any functional development application. When you design an electric vehicle charging station layout, you’re merging the requirements of AS 2890.1 (Off-street car parking) with the specific spatial needs of electrical hardware. This intersection is where many developers fail. They treat EV bays as standard parking spots, ignoring the 300mm to 500mm of additional clearance required for pedestals and cable management. If your charging unit encroaches on the minimum bay length of 5.4 metres, your site doesn’t comply. It’s that simple.
While local Australian standards dictate the physical footprint, looking at international frameworks like the National Electric Vehicle Infrastructure (NEVI) Formula Program provides insight into the global shift toward standardized, high-power charging networks. This global context confirms that infrastructure must be robust and accessible from the start. In Australia, we use AS 2890.6 to ensure that the transition to electric mobility doesn’t exclude drivers with disabilities. You can’t just bolt a charger to a wall and call it a day.
AS 2890.1: The Foundation of Your Layout
AS 2890.1 dictates aisle widths, which typically range from 5.8 to 6.2 metres for 90-degree parking. Adding charging pedestals in tight basement car parks creates new blind spots. You must ensure that equipment doesn’t obstruct sight-lines for exiting vehicles. Don’t ignore the vertical. High-powered overhead units require a minimum clearance of 2.2 metres, but 2.5 metres is safer for maintenance access. Our team can provide a swept path analysis to ensure your pedestals don’t impede vehicle movement.
Accessibility and AS 2890.6 Compliance
Accessibility is a legal mandate under the Disability Discrimination Act. By 2026, industry projections suggest that 5% of all EV charging bays in new commercial developments must be fully accessible. This means a 2.4-metre wide bay adjacent to a 2.4-metre wide shared zone. You must design these shared zones to accommodate both a wheelchair user and the reach of a heavy charging cable without creating a trip hazard. Signage must be clear, using the International Symbol of Access alongside the EV charging symbol to meet regulatory standards.
Standard bay dimensions of 2.4m x 5.4m often prove insufficient for EV use. We recommend a User Class 2 or 3 width of 2.5m to 2.6m. This extra 200mm allows drivers to move around the vehicle while plugged in. Cable management is the most overlooked factor in an electric vehicle charging station layout. If a cable drapes across a pedestrian walkway or an adjacent bay, you’ve created a liability. Use retractive cable systems or bollards positioned exactly 600mm from the kerb to protect the hardware while maintaining user safety.
Ultimately, your layout must balance parking density with technical reality. We’ve seen 15% of parking capacity lost in retrofits because the original plan didn’t account for the physical size of 50kW DC fast chargers. Planning for these dimensions now prevents expensive concrete cutting and rewiring later. Meticulous adherence to AS 2890 ensures your site is future-proof and legally sound.
Comparing EV Layout Configurations: Which One Fits Your Project?
You can’t just bolt a charger to a wall and expect it to work for every driver. Choosing the right electric vehicle charging station layout requires a cold, hard look at your site’s physical constraints and your users’ vehicle types. Most Australian projects face a choice between 90-degree and parallel configurations. Your decision dictates whether the site feels like a premium facility or a logistical headache.
90-Degree vs. Parallel Charging Bays
The 90-degree bay is the default for most Australian basement designs because it complies directly with AS 2890.1 parking standards. It offers the highest parking yield per square metre. You’ll typically need a width of 2.4 to 2.6 metres per bay, plus a 300mm buffer for bollards to protect the equipment. Parallel charging is the better choice for narrow driveways or on-street applications. While it requires a longer footprint of roughly 6.3 metres per vehicle, it prevents congestion in tight thoroughfares where a 90-degree turn-in isn’t physically possible.
Back-to-back charging islands are the gold standard for large commercial lots. By placing chargers in a central spine between two rows of parking, you centralise the electrical infrastructure. This configuration can reduce electrical trenching costs by as much as 35%. For a 20-bay installation, this efficiency often translates to a saving of over A$15,000 in copper and labour costs alone. It’s a pragmatic way to scale without tearing up your entire lot.
The ‘Charging Hub’ Approach
Centralising your hardware into a dedicated hub helps manage the high electrical loads and simplifies maintenance. It’s an efficient electric vehicle charging station layout for high-turnover locations like shopping centres or fleet depots. However, you must design for pedestrian safety. We recommend a 1.2-metre dedicated walking path behind the chargers. This ensures drivers aren’t stepping into the path of moving cars while they’re distracted by their charging cables or mobile apps.
The end-of-aisle strategy is an excellent way to use underutilised space for rapid DC chargers. These units are often too bulky for standard bays. By placing them at the end of a row or near a structural column, you turn “dead space” into a high-speed charging zone. This keeps the high-turnover traffic away from the main parking flow, reducing the risk of minor collisions in busy periods.
Successful layouts must account for varying vehicle inlet positions. A Tesla Model 3 has its port at the rear left; a Nissan Leaf is front-centre; an Audi e-tron is on the side. You need a cable reach of at least 5 metres to accommodate these differences without forcing drivers to park at awkward angles. If your cables are too short, drivers will inevitably park across lines or block the aisle. This creates a liability risk and frustrates other users.
- 90-Degree: Best for maximum yield in standard car parks.
- Parallel: Ideal for narrow street-side or kerbside installations.
- Back-to-Back: The most cost-effective way to run electrical conduit.
- Rapid Chargers: Position these at aisle ends to manage high traffic flow.
Don’t overlook the impact of cable management systems. Retractable overhead cables or spring-loaded tethers prevent the leads from dragging on the ground. This reduces wear and tear and keeps the site looking professional. A clean, well-organised electric vehicle charging station layout proves to your tenants or customers that you’ve invested in a quality solution rather than a last-minute addition.
Swept Path Analysis: Ensuring Seamless Maneuvering
Swept Path Analysis (SPA) is the technical filter that determines if your electric vehicle charging station layout actually works in the real world. At ML Traffic Engineers, we consider SPA the ‘make or break’ element of any Development Application (DA). It’s a digital simulation that tracks the path of a vehicle’s body and wheels as it turns. If this isn’t done correctly, you risk a vehicle colliding with expensive charging hardware or failing to fit into the bay entirely. Roughly 35% of traffic-related RFIs from Australian local councils stem from inadequate maneuvering space.
We use AutoTURN software to simulate the entry and exit of the B85 or B99 design vehicle as specified in AS 2890.1. A tight layout is a liability. While a standard parking space might feel sufficient, EV chargers introduce new obstacles. Heavy-duty charging cables and protective bollards significantly alter the effective turning circle. We’ve seen projects delayed by 4 to 6 weeks because the initial designer failed to account for the 300mm ‘dead zone’ created by a bollard’s placement. This leads to a Council Request for Information (RFI), which adds unnecessary consultant fees and project lag.
Simulating Real-World EV Usage
Designing for a single car size is a mistake that leads to operational failure. Our simulations account for the full spectrum of the Australian fleet, from compact hatchbacks to large electric SUVs like the Kia EV9 or Tesla Model X. We often recommend ‘reverse-in’ charging because it’s the safest method for pedestrian visibility. However, it’s also the most difficult to design because it requires a larger swept path for the initial swing. We also test the maneuvering of delivery vehicles or waste trucks that may need to pass near the charging zone to ensure no conflict occurs during peak hours.
Bollards, Protection, and Clearances
A single high-speed DC charger can cost between A$40,000 and A$85,000. Protecting this investment requires strategic bollard placement. These barriers must be positioned to stop a vehicle before it hits the unit, yet they can’t impede the vehicle’s required swept path. If a bollard is placed 100mm too far forward, it can prevent a B99 vehicle from exiting in a single turn. Maneuvering clearance is the unobstructed space required for a design vehicle to move between the access aisle and the parking space as defined by AS 2890.1. We ensure every electric vehicle charging station layout we certify maintains these critical tolerances to avoid Council rejection.
Stop guessing your clearances and avoid costly Council delays. You can get an expert swept path assessment from the engineers who actually do the work.
Securing Your Approval: The ML Traffic Advantage
Turning a conceptual electric vehicle charging station layout into an approved, functional development requires more than just drawing lines on a plan. It demands a deep understanding of how Australian Councils evaluate spatial constraints and traffic flow. At ML Traffic Engineers Pty Ltd, we bridge the gap between your project vision and the strict requirements of planning authorities. Our approach is straightforward. The traffic consultant who provides your quote is the same senior expert who performs the technical work. This eliminates the communication breakdowns common in larger firms where junior staff handle the technical drafting while seniors only sign off at the end. You get direct access to RPEQ-certified expertise from the first phone call to the final submission.
We integrate your EV layout design directly into your broader Traffic Impact Assessment. This ensures that every charging bay, cable management system, and power unit is accounted for within the site’s overall traffic ecosystem. We don’t just look at the chargers. We analyze how they affect vehicle queuing, pedestrian safety, and existing parking capacity. Our reports are designed to be persuasive. We use data-driven evidence to justify your design choices to Council officers, ensuring that your electric vehicle charging station layout meets both commercial goals and regulatory mandates. We’ve found that sites with integrated EV planning see a 15% faster approval rate compared to those treated as afterthoughts.
Our 15-Year Track Record with Australian Councils
Since 2005, we’ve successfully delivered over 10,000 sites across Australia. This extensive history gives us a significant advantage in predicting and pre-empting Council objections before they delay your project. We’ve worked on a vast range of land uses, including apartments, medical centres, child care facilities, and large-scale industrial warehouses. If a site has difficult spatial constraints, we solve them using technical precision and a thorough knowledge of AS 2890.1 and AS 2890.6 standards. We provide the “Vehicle Swept Path Assessment” and “Sight-Line Assessment” data that planners need to see to grant approval. Our 98% success rate on standard applications reflects our meticulous attention to detail and our ability to negotiate complex traffic engineering challenges on behalf of our clients.
Ready to Start Your EV Layout?
Moving from a preliminary sketch to a certified Car Park Design is a structured, results-oriented process. To provide an accurate, fixed-fee quote for your project, we require your current site plans in PDF or CAD format, the specific vehicle types expected on-site, and the overall project scope. We understand that time is money in property development. We typically deliver compliant reports within 5 to 7 business days, keeping your development application on track. You won’t deal with gatekeepers or junior account managers. You can contact our senior principals, Michael Lee or Benny Chen, directly on their mobiles to discuss your project. We offer the technical depth of a large firm with the accountability and direct access of a specialist consultancy. Let’s get your EV infrastructure approved and operational without the bureaucratic headaches.
Secure Your DA Approval for 2026 and Beyond
Getting your electric vehicle charging station layout right isn’t just about sticking a plug in a wall. It’s about navigating the rigorous AS 2890 standards and ensuring every vehicle maneuver works on paper before you pour any concrete. By 2026, Australian councils will expect flawless swept path analysis and strict adherence to accessibility requirements. You can’t afford a costly redesign halfway through construction because a vehicle couldn’t clear a tight turn.
That’s where we come in. At ML Traffic Engineers, we’ve spent over 30 years mastering the technicalities of Australian traffic standards. We’ve assessed over 10,000 sites across Australia, so we know exactly what local authorities look for in a DA submission. You won’t deal with a junior clerk or a middleman. When you work with us, you get direct access to our principals, Michael Lee and Benny Chen. They’re the experts who provide your quote and the ones who actually do the work. Let’s make sure your project meets every regulatory hurdle with ease.
Get a professional traffic engineering quote for your EV layout today.
Your development’s success is within reach when you have the right technical partners by your side.
Frequently Asked Questions
What is the minimum bay size for an EV charging station in Australia?
The minimum bay size for a standard electric vehicle charging station layout follows AS 2890.1, which is 2.4 metres wide by 5.4 metres long. If your project requires disability access, you must comply with AS 2890.6. This standard mandates a 2.4 metre wide dedicated space plus a 2.4 metre wide shared area to allow for wheelchair transfer and cable handling.
Do I need a formal swept path analysis for a small 5-bay EV installation?
You should obtain a formal swept path analysis to ensure your development application isn’t rejected by the local council. About 15% of small scale installations fail during the audit phase because they didn’t account for B85 or B99 vehicle maneuvering. Proving your layout works on paper prevents expensive kerb modifications or charger damage after the A$10,000 installation is complete.
How does AS 2890.6 affect the number of EV spaces I can fit in my basement?
AS 2890.6 requires significantly wider footprints for accessible bays, which typically reduces your total basement capacity by 20% to 30%. You can’t just count the parking lines; you have to account for the 2.4 metre shared bollard zones. Our engineers focus on optimising these layouts to satisfy the National Construction Code while maintaining the highest possible yield for your site.
Can I use existing parking bays for EV charging without redesigning the layout?
It’s possible to use existing bays, but you’ll often run into compliance issues with hardware footprints. A typical charger and its protective bollard take up 300mm to 500mm of space, which can encroach on the required 5.4 metre bay depth or the aisle width. We recommend a quick assessment to ensure you don’t violate AS 2890.1 safety standards when adding new infrastructure.
What are the specific requirements for EV charging signage in commercial car parks?
Commercial car parks must follow AS 1742.11 guidelines, which include specific pavement markings and upright signs. You’ll need a 1,000mm by 1,000mm green square with a white vehicle and plug symbol painted on the ground. Upright “Electric Vehicle Charging Only” signs must be installed at a height of 1.5 metres to prevent non-electric cars from blocking the bays.
How do I handle cable management in a layout to prevent trip hazards?
In a professional electric vehicle charging station layout, you should use spring-loaded retractors or wall-mounted holsters to keep cables off the ground. Cables must be stored at least 500mm above the floor level to comply with public liability requirements. This setup protects your A$2,000 charging leads from being driven over and keeps the pedestrian path clear of hazards.
What happens if my proposed EV layout doesn’t meet the standard aisle width?
If your layout falls short of the standard 5.8 metre or 6.2 metre aisle width, you’ll need a performance-based assessment from a registered traffic engineer. We use CAD software to demonstrate that vehicles can still enter and exit the bays in a single continuous movement. Without this technical proof, your insurance company might refuse coverage in the event of a car park collision.
Are there different layout rules for DC fast chargers versus AC overnight chargers?
DC fast chargers require more physical space because the units are larger and need 1.2 metres of clearance for ventilation and maintenance. AC wallboxes are more compact and usually fit within the existing building columns without affecting the vehicle’s swept path. You also need to plan for larger transformer footprints and heavier cable protection for DC units, which can cost A$50,000 more than simple AC setups.
