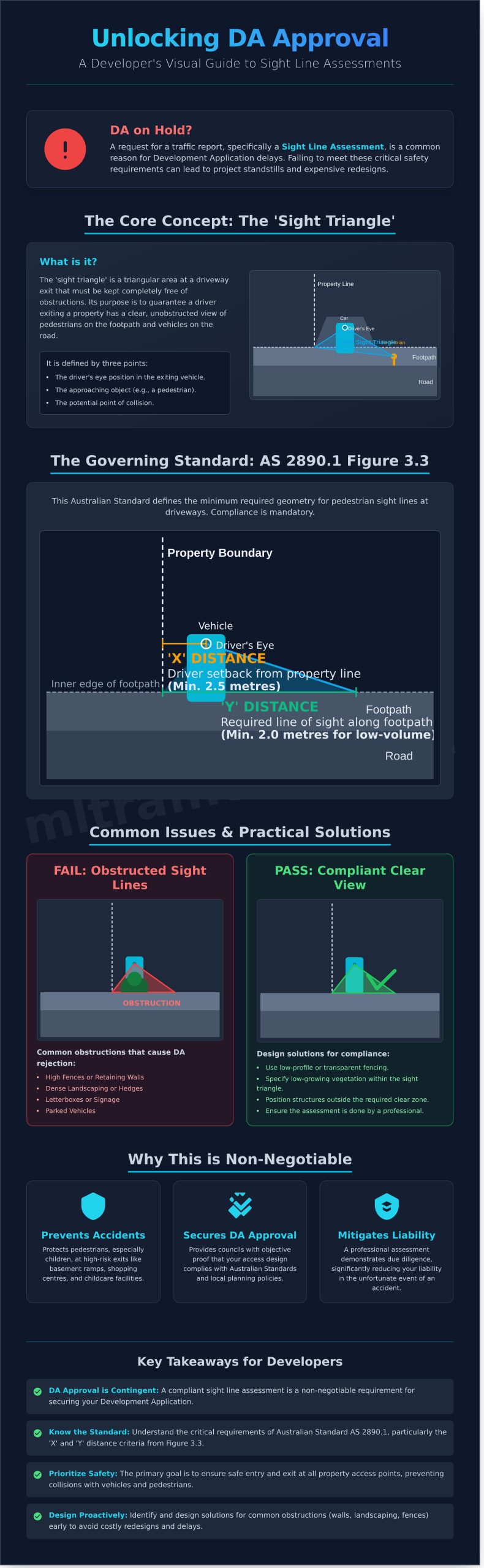

Sight Line Assessment: A Developer’s Guide to Vehicle & Pedestrian Safety

A request from council for a traffic engineering report can halt a Development Application (DA), leading to project delays and expensive redesigns. Often at the core of these requests is the requirement for a comprehensive Sight-line Assessment of Vehicles on the Road and Pedestrians on the Footpath. This analysis is not a procedural formality; it is a critical safety requirement mandated by Australian Standards to prevent accidents at driveways and access points. Misunderstanding or failing to address these technical requirements is a common cause for DA rejection.

This guide provides developers with a direct, professional explanation of sight line assessments. We will detail the specific requirements of AS 2890.1, explain why this assessment is fundamental to securing your DA approval, and outline the necessary steps to ensure your project is compliant from the outset. By understanding these principles, you can confidently address council’s traffic engineering requirements, ensure the safety of your site, and avoid costly planning setbacks.

What is a Sight Line Assessment and Why is it Critical for DA Approval?

A sight line assessment is a technical evaluation that determines whether a driver exiting a property has a clear and unobstructed view of oncoming vehicles and pedestrians. For developers, this is not a procedural formality; it is a fundamental component of safe site design. The primary purpose is to engineer access points-such as driveways and intersections-to prevent collisions by ensuring all parties have adequate time to see and react to each other.

To better understand the dynamics of intersecting traffic, the following video illustrates a common scenario at an uncontrolled intersection.

Failing to provide adequate sight lines is a direct breach of public safety obligations and a significant risk to any development project. Councils across Australia mandate these assessments to protect the community and hold property owners accountable. A thorough Sight-line Assessment of Vehicles on the Road and Pedestrians on the Footpath is therefore critical for securing Development Application (DA) approval and mitigating significant future liability in the event of an accident.

The Core Concept: Understanding the ‘Sight Triangle’

The core of any assessment is the ‘sight triangle’. This is the triangular area that must be kept free of obstructions to ensure visibility. It is defined by three points: the driver’s eye position, the approaching object (e.g., a pedestrian or another vehicle), and the potential point of collision. The principle is as simple as looking both ways before crossing a road; the sight triangle formalises this for vehicle access. Any object within this triangle-such as fences, vegetation, or signage-is a potential hazard that compromises safety and must be addressed. This concept is a practical application of the principles behind Sightline (architecture), where clear lines of sight are essential for function and safety.

The Real-World Risk: Common Accident Scenarios at Driveways

Inadequate sight lines directly contribute to preventable accidents. Common high-risk scenarios include vehicles exiting steep basement ramps with limited visibility of the footpath, or driveways at childcare centres where small children may be obscured from a driver’s view. Apartment buildings and shopping centres, with their high traffic volumes, present similar challenges. A professional assessment identifies and mitigates these specific risks before they can lead to a serious incident.

Council’s Perspective: Why Planners Mandate This Assessment

Local councils are responsible for enforcing development standards that ensure public safety. A sight line assessment provides objective proof that a proposed access point complies with Australian Standards (such as AS 2890.1) and local planning policies. It is a critical component of the broader Traffic Impact Assessment (TIA) process and is non-negotiable for gaining DA approval. Demonstrating compliance through a professional report is the only way to satisfy planners that a development will not create a new public safety hazard. Discover the range of assessments we offer in our traffic engineering services.

The Governing Standard: A Practical Guide to AS 2890.1 Figure 3.3

In Australia, the design and layout of off-street parking facilities are governed by a critical document: Australian Standard AS 2890.1. For developers and architects, compliance is not optional; it is a fundamental requirement for council approval. Central to ensuring public safety at property exits is Figure 3.3 of this standard, which specifically details pedestrian sight lines at driveways. A compliant Sight-line Assessment of Vehicles on the Road and Pedestrians on the Footpath is directly measured against the geometric principles outlined in this diagram.

Decoding Figure 3.3: The ‘X’ and ‘Y’ Distances Explained

Figure 3.3 establishes a “sight triangle” at the property boundary-an unobstructed area that allows a driver to see pedestrians on the footpath before crossing it. This triangle is defined by two key dimensions:

• The ‘X’ Distance: This is the setback of the driver’s eye position from the property line. For standard passenger vehicles, this is typically set at a minimum of 2.5 metres.
• The ‘Y’ Distance: This represents the required line of sight along the inner edge of the footpath. For low-volume driveways, a driver at the ‘X’ distance must be able to clearly see 2.0 metres in each direction along the footpath.

Together, these dimensions form the essential sight lines. Any object taller than 1.0 metre located within this triangular area is considered a sight line obstruction and will result in non-compliance.

Factors That Influence Sight Line Requirements

While AS 2890.1 provides baseline values, site-specific conditions often demand a more rigorous assessment. Local councils may impose stricter requirements based on pedestrian activity and traffic conditions. For instance, a driveway near a school or busy shopping strip will likely require an increased ‘Y’ distance to account for higher pedestrian volumes. Similarly, the speed of traffic on the adjacent road influences the necessary sight distance for a vehicle to exit safely. The core principles of ensuring adequate visibility are a universal tenet of traffic safety, as detailed in comprehensive guides like the Intersection Safety Manual. Furthermore, the driveway gradient itself can create vertical obstructions, potentially hiding small children or objects from a driver’s view.

Common Design Flaws That Fail the Figure 3.3 Test

Many development applications face delays due to common and avoidable design flaws that obstruct the required sight triangle. A professional sight-line assessment identifies these issues early in the design process. Common obstructions include:

• Solid Boundary Structures: High brick walls, solid panel fences, and retaining walls that encroach upon the sight triangle.
• Dense Landscaping: Mature hedges, dense shrubbery, or improperly placed trees that block a driver’s line of sight to the footpath.
• Architectural and Utility Elements: Structural pillars, support columns for awnings, and utility boxes (e.g., NBN or electrical pillars) are frequent causes of non-compliance.
• Street Furniture and Signage: Poorly positioned letterboxes, large signs, and even parked vehicles can create dangerous and non-compliant blind spots.

The Sight Line Assessment Process: How We Analyse Your Site

A professional Sight-line Assessment of Vehicles on the Road and Pedestrians on the Footpath is a meticulous, multi-stage process conducted by an experienced traffic engineer. At ML Traffic Engineers Pty Ltd, we follow a proven methodology to ensure every analysis is accurate, compliant, and provides clear outcomes for your development application. This transparent approach de-risks your project by identifying and solving safety issues before they become costly construction problems.

Step 1: Desktop Review of Architectural & Landscape Plans

Our process begins with a comprehensive desktop review of your submitted architectural and landscape plans. Our qualified engineers meticulously examine the proposed layout, identifying potential sight line obstructions from the outset. This includes elements such as:

• Boundary walls and fences
• Structural columns or piers
• Letterboxes and service pits
• Proposed dense vegetation or significant trees

This initial check is critical for flagging compliance issues early, preventing the need for expensive design changes post-construction.

Step 2: CAD Analysis and Sight Triangle Plotting

Following the desktop review, we utilise specialised CAD (Computer-Aided Design) software to create a precise digital model of the driveway, footpath, and roadway interface. This technical modelling is the core of a Sight-line Assessment of Vehicles on the Road and Pedestrians on the Footpath. We accurately plot the required sight triangles as specified in Australian Standard AS 2890.1. This visual analysis provides an unambiguous depiction of the available sight lines, clearly identifying any encroachments from buildings, landscaping, or other features.

Step 3: Reporting and Recommendations for Compliance

The final stage is the preparation of a formal traffic engineering report. This document details our methodology, presents the findings from the CAD analysis, and provides a definitive statement on compliance. If the design is found to be non-compliant, we provide clear, actionable recommendations to achieve the required safety standards. This report is a crucial document for your Development Application (DA) package, demonstrating to council that all safety obligations, such as those outlined in state-level guidelines like the SA Code of Technical Requirements for Traffic Control, have been professionally assessed. For more technical guides, see our other traffic engineering articles.

Achieving Compliance: Practical Solutions for Common Sight Line Issues

Identifying sight line deficiencies is only the first step. The true measure of a successful project lies in implementing effective, practical solutions. Proactive design, undertaken in the early stages of a development application, is the most efficient path to council approval and a safe outcome. Engaging an experienced traffic engineer early in the process prevents costly redesigns and delays. A comprehensive Sight-line Assessment of Vehicles on the Road and Pedestrians on the Footpath must therefore deliver buildable strategies that integrate seamlessly with the project’s architecture and civil design.

Architectural and Landscaping Design Solutions

Simple, intelligent design choices are fundamental to maintaining clear sight triangles and ensuring pedestrian safety. Architects and developers can directly influence compliance by incorporating the following into their plans:

• Utilising low-height (under 1.0m) or visually permeable fencing, such as slats or pool-style glass, near driveway access points.
• Splaying or angling walls, letterboxes, and structural columns away from the sight line corridor to open up views for exiting drivers.
• Specifying low-lying shrubs and ground cover in landscaping plans instead of trees or dense hedges that will obstruct views as they mature.
• Strategically locating fixed objects like utility meters, signage, and bins outside of the critical sight triangle.

Addressing Gradient and Vertical Alignment Challenges

The vertical profile of a driveway is as critical as its horizontal layout. A common issue arises when a steep driveway ramp creates a crest at the property boundary. This high point can completely block a driver’s view of small children or other pedestrians on the footpath. The solution is to design a smooth vertical curve that allows the driver’s eye level to maintain a clear line of sight to the footpath throughout the exit manoeuvre. This requires careful coordination with civil engineers to ensure driveway grades and property levels are compliant with Australian Standards (AS 2890.1).

When Are Traffic Mirrors an Acceptable Solution?

While convex safety mirrors may seem like a simple fix, most councils consider them a last resort, not a primary design solution. They are a reactive measure for sites with unavoidable constraints. Mirrors introduce several liabilities: they require regular cleaning and alignment to be effective, can be vandalised, and may give drivers a false sense of security due to image distortion. A properly designed site should not rely on a mirror for its fundamental safety. If your project involves a constrained site where standard design solutions for a Sight-line Assessment of Vehicles on the Road and Pedestrians on the Footpath are not feasible, specialist advice is required. Have a complex site? Contact our senior engineers for expert advice.

Secure Your DA Approval with Expert Sight Line Assessment

Ultimately, a correctly executed sight line assessment is a non-negotiable component of any successful development. It is not merely a procedural step, but a fundamental requirement for ensuring the safety of all road and footpath users, and a critical hurdle for gaining Development Application approval. Understanding the technical demands of Australian Standard AS 2890.1 is paramount, as is knowing that even the most complex site constraints can be overcome with practical, expertly engineered solutions. A thorough Sight-line Assessment of Vehicles on the Road and Pedestrians on the Footpath mitigates risk and clears the path for project success.

Do not let compliance issues delay your project. At ML Traffic Engineers, our senior traffic engineers provide the direct, hands-on involvement required to navigate these complexities. With over 15 years of experience securing DA approvals for private developers, we are proven experts in the application of AS 2890.1 and the Austroads Guidelines. We deliver the authoritative, no-nonsense advice needed to achieve compliance efficiently. Ensure your project is compliant. Contact ML Traffic Engineers for a quote. Proceed with the confidence that your project is in experienced hands.

Frequently Asked Questions

What is the ‘sight triangle’ and why is it so important in traffic engineering?

The ‘sight triangle’ is a specified triangular area at an intersection or driveway access point which must be kept clear of obstructions. Its dimensions are determined by vehicle speeds and road geometry. This clear line of sight is critical for safety, as it allows a driver exiting a property to see approaching traffic and pedestrians, and for drivers on the public road to see the exiting vehicle. Compliance with sight triangle requirements, as defined by Austroads and Australian Standards, is fundamental to preventing collisions.

Are traffic safety mirrors a guaranteed solution for poor sight lines in a DA?

No, traffic safety mirrors are not a guaranteed solution and are generally considered a last resort by local councils. While they can be proposed, reliance on a mirror introduces potential points of failure, including damage, maintenance requirements, and image distortion. The primary objective is always to achieve compliant sight lines through compliant geometric design. A mirror may be conditionally approved only when all other design-based solutions have been exhausted and proven unfeasible for the specific site constraints.

Does a sight line assessment cover vehicles both entering and exiting a property?

Yes, a comprehensive sight line assessment evaluates safety for both vehicle movements. The primary focus is typically on the egress (exiting) manoeuvre, ensuring the driver can safely see oncoming traffic and pedestrians before entering the road. However, the assessment also considers the ingress (entering) manoeuvre, particularly the visibility for through-traffic of a vehicle slowing to turn into the property. A thorough assessment ensures safety is maintained from all operational perspectives.

What happens if my proposed development fails the sight line assessment?

If a proposed development fails its sight line assessment, the development application (DA) is likely to be met with a Request for Further Information (RFI) from the council or an outright refusal. To proceed, the design must be modified to achieve compliance. This may involve relocating the driveway access point, altering the property’s internal layout, modifying landscaping, or reducing the height of boundary walls and fences. A professional traffic engineer can identify the non-compliance and recommend viable design solutions.

Is a formal sight line assessment required for a simple single-dwelling driveway?

While a formal report may not always be explicitly requested by council for a simple single-dwelling, the driveway must still comply with the minimum safety sight distance requirements outlined in Australian Standard AS 2890.1. A formal assessment becomes necessary if the driveway is located on a busy road, near a crest or curve, or if existing obstructions like trees or neighbouring fences compromise visibility. It is prudent to confirm requirements with a traffic consultant to avoid future compliance issues.

How does the speed of the adjacent road affect the required sight distance?

The speed of the adjacent road has a direct and significant impact on the required sight distance. A higher speed limit necessitates a much longer sight line. This is because a driver travelling at a higher speed requires more time and distance to perceive a potential hazard-such as a vehicle exiting a driveway-and react safely by braking or manoeuvring. Required distances are calculated using established formulas in Austroads guides, which account for perception-reaction time and vehicle braking distances at different operating speeds.

Can landscaping and trees cause a development to fail a sight line assessment?

Yes, landscaping, trees, and other features are common causes of non-compliance. Any object that obstructs the required sight triangle, such as dense hedges, retaining walls, solid fences, or even street furniture, can result in a failed assessment. A complete Sight-line Assessment of Vehicles on the Road and Pedestrians on the Footpath identifies all such obstructions. The solution often involves a revised landscaping plan, trimming or removal of vegetation, or lowering fence heights to ensure permanent, unobstructed visibility.
