What is Swept Path Analysis for Motorhomes?
Swept path analysis for motorhomes is a technical simulation that maps the exact envelope of space a vehicle requires to complete a manoeuvre. It isn’t a simple drawing of tyre marks on a site plan. It’s a dynamic computer model used by traffic engineers to ensure a vehicle can navigate a specific route without striking obstacles. In Australia, 85% of local councils now require these digital assessments for any Development Application (DA) involving heavy or recreational vehicles. We use specialized software like AutoTURN to validate that a proposed driveway or car park functions correctly before you pour a single cubic metre of concrete.
This process goes far beyond basic geometry. It accounts for the entire vehicle body, including "body swing" and "overhang" clearances. A standard motorhome doesn’t behave like a passenger car; its length and height create unique physical demands on infrastructure. If your DA doesn’t include swept path analysis for motorhomes, you risk expensive delays or total rejection from planning authorities. It’s an essential validation tool for modern residential and commercial designs.

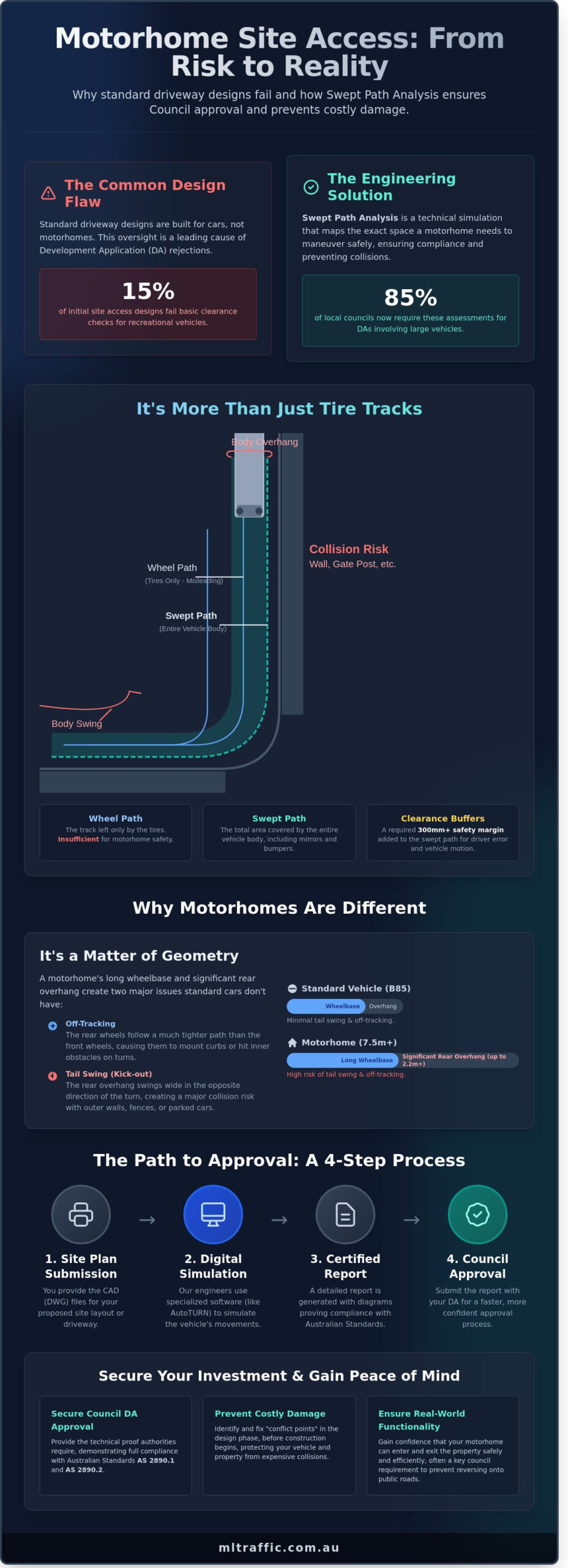

The Difference Between Wheel Paths and Swept Paths
Tracking tyres alone is insufficient for motorhome safety. While the turning radius tells you where the wheels go, it ignores the vehicle’s "overhang." A standard 7.5 metre motorhome often has a rear overhang exceeding 2.2 metres. As the driver turns the steering wheel, the rear section swings out in the opposite direction. If you haven’t accounted for this 300mm to 600mm of extra clearance, the vehicle’s body will strike walls, bollards, or gate posts even if the tyres stay perfectly on the pavement.
-
Wheel Path: The track left by the tyres during a turn.
-
Swept Path: The total area covered by the vehicle’s outer body, including mirrors and bumpers.
-
Clearance Buffers: Professional engineering reports include a 300mm safety margin to account for driver error and suspension movement.
Relying on wheel paths leads to property damage. We’ve seen 15% of DIY driveway designs fail because the owner didn’t account for the vertical clearance and body swing of their specific RV model. Professional simulations identify these "conflict points" during the design phase, allowing for adjustments before construction costs escalate.
Common Use Cases for Motorhome Simulations
Residential driveways represent a primary use case for these assessments. Many homeowners invest upwards of A$150,000 in a motorhome and need to ensure it fits safely into a garage or side-access storage area. We provide the swept path analysis for motorhomes to prove the vehicle can enter and exit the property in a single forward motion, which is a common requirement for Australian councils to prevent dangerous reversing onto public roads.
Commercial developers also rely on these simulations for caravan park internal road layouts. These sites must accommodate Class C motorhomes that reach lengths of 9.5 metres. We use the simulations to verify that bay access and internal intersections meet Australian Standard AS 2890.1. Service centres and specialized wash facilities use our data to position equipment so it doesn’t get clipped by the wide tail swing of turning vehicles. Whether it’s a private residence or a 200-bay holiday park, the simulation provides the technical proof needed for project approval.
Why Motorhomes Require Specialized Maneuverability Checks
Motorhomes aren’t just oversized SUVs; they’re essentially heavy rigid vehicles built on commercial truck or bus chassis. Designing access for them without a technical assessment is a high-stakes gamble. Swept path analysis for motorhomes accounts for the fact that these vehicles don’t follow the same trajectory as a passenger car. While a standard B85 vehicle, representing 85% of cars, fits comfortably in a standard Australian driveway, a large motorhome often requires clearances that exceed the B99 design vehicle standards found in AS 2890.1.
The primary issue is the relationship between the wheelbase and the total body length. A typical Toyota HiAce van has a wheelbase of about 3.2 metres, but a Class A motorhome can stretch that to 5.5 metres or more. This creates significant off-tracking. When the front wheels turn, the rear wheels follow a much tighter arc. If your site design doesn’t provide enough "fat" in the turn, the vehicle will inevitably mount the kerb or collide with landscaping. If you’re managing a development, you can consult with our engineers to ensure your layout accommodates these specific dimensions before construction begins.
Understanding Motorhome Geometry
The distance between axles dictates the turning radius, but the "kick-out" effect is equally dangerous. This happens when the rear overhang swings in the opposite direction of the turn. On a 10 metre vehicle, a sharp turn can cause the tail to swing out by nearly a metre, threatening gate posts or parked cars. Class A, B, and C motorhomes have different pivot points, requiring specific design considerations for each class to avoid body strikes.
The Risks of Inadequate Access Design
Ignoring these technicalities leads to expensive consequences. A single body strike against a structural pillar can result in repair bills exceeding A$12,000. In shared zones, inadequate turning space creates safety hazards for pedestrians who don’t anticipate the rear swing. We often see "stuck vehicles" in tight cul-de-sacs, resulting in costly towing fees. Professional swept path analysis for motorhomes identifies these pinch points before they become liabilities or cause property damage.
Vertical and lateral clearances demand 3D consideration. Many modern Australian motorhomes stand 3.2 metres tall and 2.5 metres wide. Standard residential eaves, service pipes, or low-hanging branches that clear a 4WD will easily damage a motorhome’s roof-mounted air conditioning unit. AS 2890.1 specifies minimum clearances, but these often don’t account for the swaying motion of a high-centre-of-gravity vehicle on uneven driveways. Meticulous planning ensures that vertical envelopes are just as accurate as the horizontal paths on the ground, preventing structural strikes that can compromise a building’s integrity.
Our assessment process uses specialized software to simulate these movements with millimetre precision. We look at the "worst-case scenario" vehicles to ensure that your site remains functional for all users. This data-driven approach removes the guesswork from site planning, ensuring that every gate, curve, and overhead obstacle is positioned to allow safe, seamless access for even the largest recreational vehicles.
Navigating Australian Standards and Council Requirements
Council planners don’t approve driveways based on guesswork. They rely on rigid benchmarks set by Australian Standards to ensure safety and functionality. When you submit a development application (DA) for a property intended to house a large vehicle, the primary focus is compliance with AS 2890.1:2004 (Off-street car parking). This standard dictates everything from the width of the access point to the curve of the transition zones. If your vehicle exceeds standard dimensions, the assessment often shifts toward AS 2890.2, which governs commercial vehicle facilities. Our team has handled over 10,000 site assessments, and we’ve seen how a lack of technical detail leads to immediate project delays.
The core of any successful application is the use of Standard Design Vehicles in simulations. We don’t just model your specific vehicle; we use templates that represent the broader vehicle class. This ensures that even if you upgrade your motorhome in three years, the driveway remains functional. Using a swept path analysis for motorhomes based on these standards provides the broad compatibility Councils demand. It proves the design works for the 99th percentile of vehicles in that category, not just a single customized model.
AS 2890.1 and AS 2890.2: Which Applies?
Determining the correct standard depends on your vehicle’s footprint. Most domestic driveways are designed for a B85 vehicle, but motorhomes typically require a B99 assessment. A B99 vehicle represents the 99.8th percentile of cars and large SUVs, measuring 5.2 metres in length. If your motorhome is a heavy rigid vehicle, we apply AS 2890.2 standards. We also evaluate driveway gradients; while a 1 in 4 (25%) grade might work for a car, a large motorhome often requires a 1 in 5 (20%) limit to prevent the chassis from bottoming out. We also conduct sight-line assessments to ensure you can see oncoming traffic clearly before the vehicle’s nose enters the roadway.
What Councils Look for in a Swept Path Report
Councils prioritize safety and traffic flow. They specifically look for evidence of forward-in and forward-out movement. Reversing onto a public road is a major safety violation that often results in a rejected application. A professional swept path analysis for motorhomes includes scaled diagrams showing the vehicle moving through the tightest turns with a 300mm clearance buffer. This precision is vital. When a qualified traffic engineer certifies these diagrams, it significantly reduces the risk of a Request for Information (RFI). In our experience, an RFI can stall a project for 28 to 45 days, so getting the technical data right the first time is a massive advantage.
At ML Traffic Engineers Pty Ltd, we don’t pass your work off to junior staff. The traffic consultant who provides your quote is the person who does the work. With between 30 and 40 years of experience each, our principals ensure your report meets every Council requirement. We provide the technical certainty needed to move your project forward without the bureaucratic headache. Whether you’re building a new shed or a complex driveway, our assessments focus on practical results and full compliance with Australian Standards.
The Swept Path Analysis Process: From CAD to Approval
Generating a reliable swept path analysis for motorhomes requires a technical, multi-step approach. We don’t rely on guesswork or manual sketches. Instead, we use a rigorous digital process to ensure your vehicle fits the space without property damage or Council rejection. Since 2005, our team has refined this five-step workflow to move projects from initial concept to final approval.
Step 1: Site Plan Submission
The process begins with your site plan. We require this in CAD format (DWG or DXF) or a high-resolution, scaled PDF. Accuracy at this stage is non-negotiable. If the plan is off by even 200mm, the entire simulation becomes invalid. We overlay the vehicle paths onto your specific property boundaries to ensure the results reflect real-world conditions.
Step 2: Vehicle Selection
We select the design vehicle based on your specific needs or local Council requirements. If you own a specific model, like a 7.9-metre Jayco Optimum, we use those exact dimensions. For broader Council compliance, we often use the B99 vehicle or a Small Rigid Vehicle (SRV) as defined by Australian Standard AS 2890.1. This ensures the design caters to the largest vehicle likely to use the space.
Step 3: Software Simulation
We run the simulations using AutoTURN, the industry-standard software for traffic engineering. This program calculates the precise geometry of the vehicle’s movement. We test various manoeuvres, including 90-degree turns, U-turns, and reverse entries into carports or garages. The software accounts for the front and rear overhangs, which are often the primary cause of collisions in tight residential spaces.
Step 4: Identifying Pinch Points
If the motorhome’s path overlaps with a wall, fence, or garden bed, we identify these as "pinch points." We don’t just report a failure. We analyse why it failed. Is the gate too narrow? Is the turning radius too tight? We suggest specific design modifications, such as widening a driveway by 500mm or relocating a bollard, to ensure the path clears all obstacles.
Step 5: Final Engineering Report
Once the path is clear, we finalise the report. This document includes the detailed diagrams and a formal assessment of the site’s suitability. Most importantly, it features an engineer’s signature. This professional endorsement is what Council planners look for when reviewing your Development Application (DA).
Data Required for an Accurate Analysis
To produce a report that stands up to scrutiny, we need precise data. This includes site boundaries, existing gate widths, and the location of utility poles or fire hydrants. If you’re designing for a private vehicle, provide the wheelbase and total length. We also need to see proposed landscaping. A small tree or a decorative rock might look good on paper, but if it sits within the 300mm clearance zone required for safe movement, it will cause a fail.
Interpreting the Results
The results of a swept path analysis for motorhomes are presented as "rainbow" diagrams. These coloured lines aren’t just for show. The blue lines typically represent the tyre paths, while the green or red lines show the body’s outer envelope. We always test for the "worst-case scenario," which involves the maximum steering lock of the vehicle. This ensures that even if a driver makes a sharp turn, they won’t clip the building. If your initial design doesn’t work, we provide expert services to fix the layout and find a functional solution.
