A development application’s success often hinges on technical details that are easily overlooked. A miscalculation in car park geometry or loading dock access can lead to significant problems: council rejection, a non-functional design, and costly, disruptive redesigns during or after construction. The key to mitigating these critical risks is a professional and accurate vehicle swept path analysis. This assessment is not a procedural formality; it is a fundamental requirement for demonstrating the safety, compliance, and operational viability of your project.
This guide has been created to provide developers with a clear understanding of this essential process. We will explain the critical role vehicle swept path analysis plays in achieving DA approval and ensuring your design meets Australian Standards. You will learn what councils look for, how to ensure all design vehicles can safely access and manoeuvre within the site, and how to confidently present a compliant and functional design. The result is the elimination of expensive construction delays and the achievement of a successful, efficient project outcome.

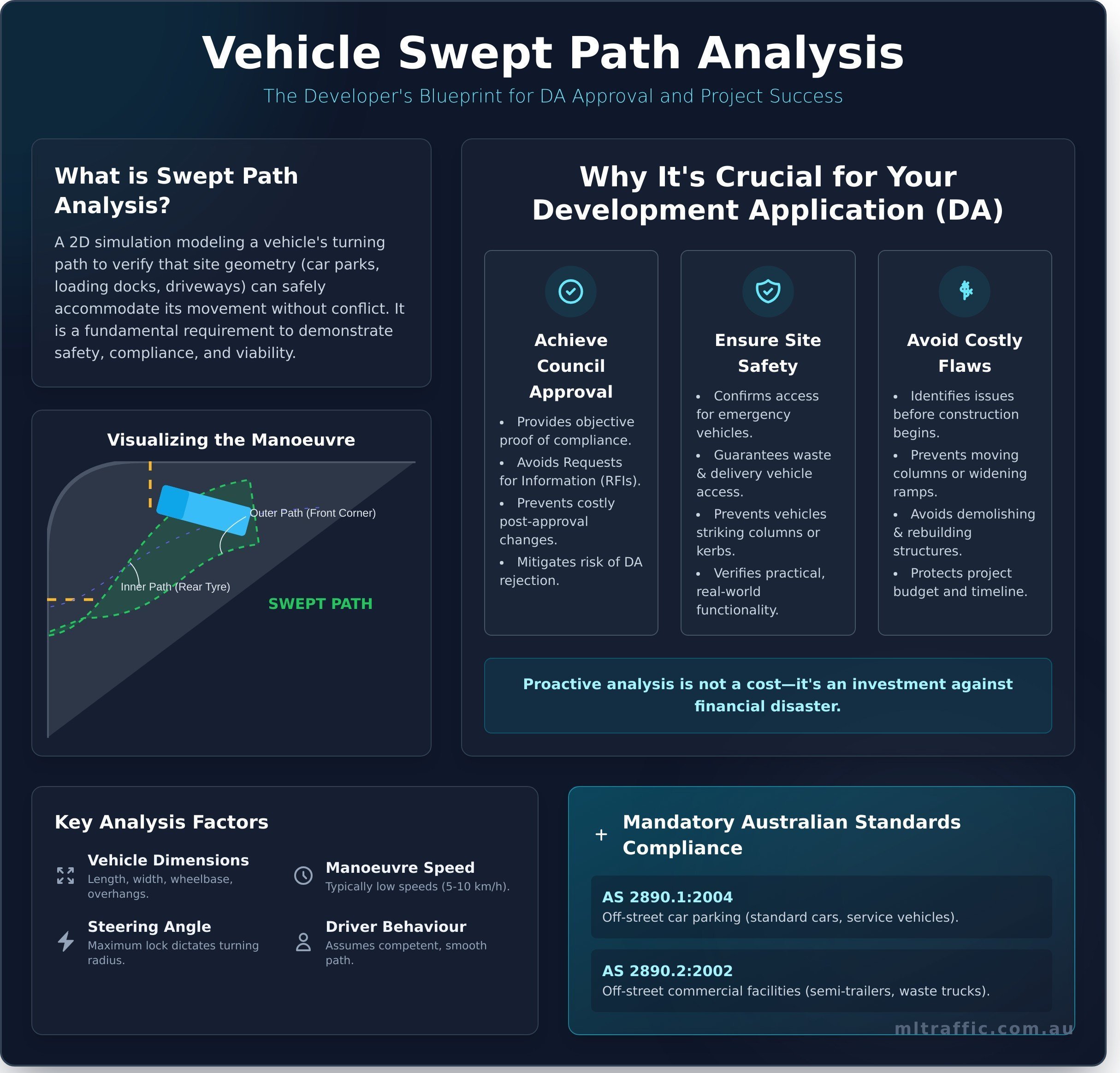

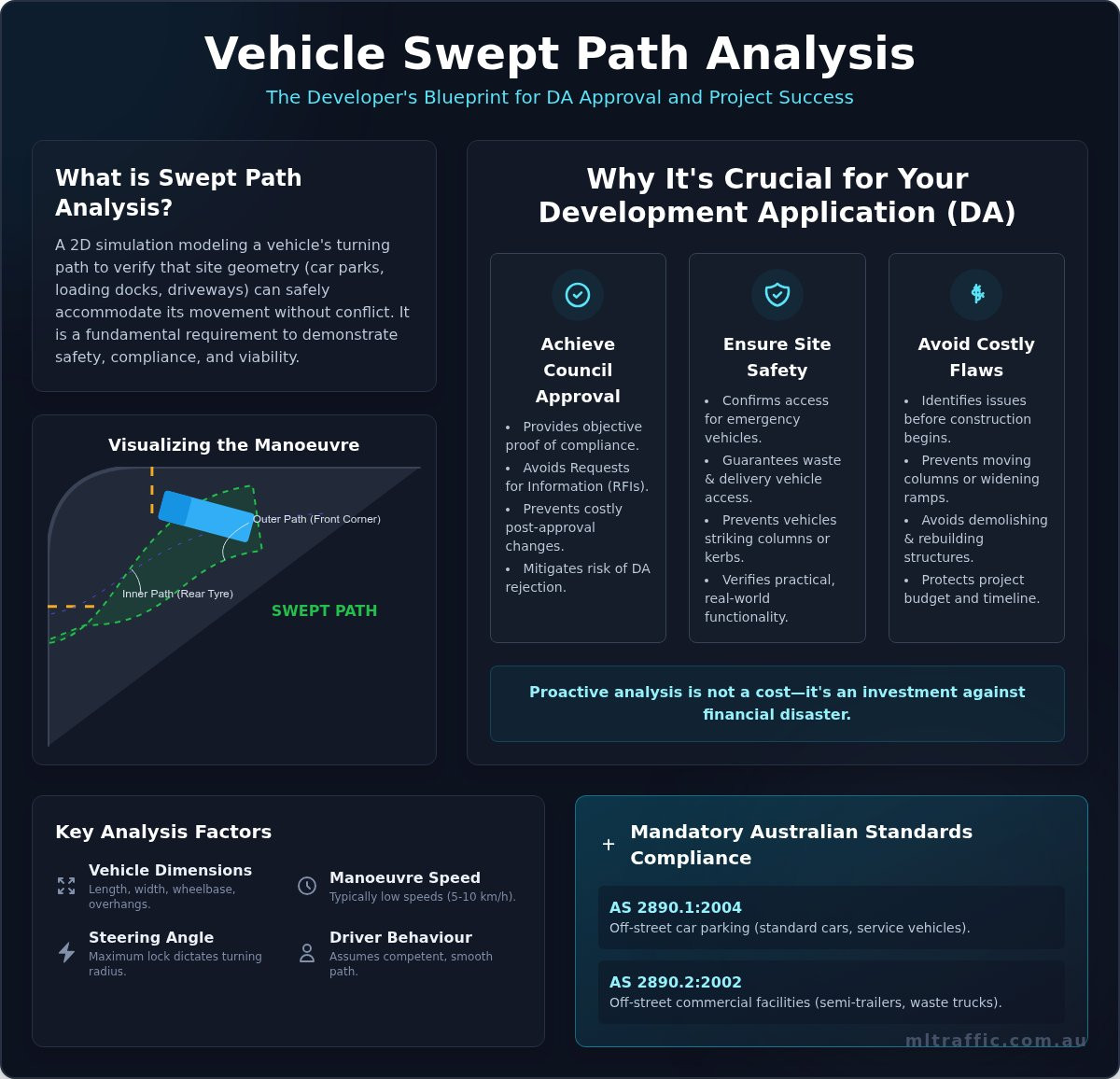

What is Vehicle Swept Path Analysis?
In simple terms for developers and architects, vehicle swept path analysis is a 2D simulation that models the turning path of a specific vehicle. Its primary purpose is to verify that the geometric design of a site-such as a car park, loading dock, driveway, or intersection-can safely and efficiently accommodate the movement of intended vehicles without conflict. This assessment is a fundamental part of the geometric design of roads and access ways, ensuring functionality and preventing costly post-construction modifications.
The analysis is conducted using specialised software, such as AutoTURN, which overlays the vehicle’s turning template onto design drawings to check for clearance against kerbs, buildings, columns, and other potential obstructions. The process relies on using standardised ‘design vehicles’ that represent the largest vehicle expected to use the facility.
This video from Autodesk provides a clear visual demonstration of the simulation process:
Defining the ‘Swept Path’
The ‘swept path’ itself is the envelope swept by the sides and corners of the vehicle body as it completes a turning manoeuvre. It is crucial to understand that this path is significantly wider than the path traced by the tyres alone. This is due to the vehicle’s front and rear overhangs. The outer path is determined by the front outside corner of the vehicle, while the inner path is determined by the rear inside tyre. The difference between these two paths represents the total space required for the turn.
Key Factors Influencing Turning Paths
A professional vehicle swept path analysis must account for several critical variables that are programmed into the simulation software. The accuracy of the assessment depends on correctly defining these factors:
-
Vehicle Dimensions: The vehicle’s length, width, wheelbase, and front/rear overhangs are the most significant factors.
-
Steering Angle: The maximum steering lock angle of the vehicle’s front wheels dictates its minimum turning radius.
-
Speed of Manoeuvre: Analysis is typically performed at low speeds (5-10 km/h) characteristic of parking and access manoeuvres.
-
Driver Behaviour: Simulations assume a competent driver following a smooth, predictable path without sudden corrections.
The Role of Australian Standards
In Australia, swept path assessments are governed by specific national standards that define the required design vehicles and their parameters. Compliance is essential for development approval.
-
AS 2890.1:2004: Pertains to off-street car parking facilities and specifies design vehicles from standard cars to small rigid trucks and service vehicles.
-
AS 2890.2:2002: Covers off-street commercial vehicle facilities, defining larger design vehicles such as semi-trailers and council waste collection trucks.
Adherence to these standards is not merely a recommendation; it is a mandatory requirement for most local councils to ensure a development’s access and circulation design is safe, functional, and compliant.
Why Swept Path Analysis is Crucial for Your Development Application (DA)
For property developers, architects, and project managers, a vehicle swept path analysis is not merely a compliance task; it is a fundamental risk mitigation tool. Integrating this assessment early in the design process is critical for ensuring a project is safe, functional, and financially viable. It provides the technical proof required to move a Development Application (DA) forward, preventing costly delays and demonstrating professional due diligence to planning authorities.
Failing to properly assess vehicle movements can lead to significant operational issues and financial penalties long after construction is complete. A thorough analysis ensures your design accommodates the required vehicles from day one, safeguarding your investment and the project’s long-term success.
Achieving Council Approval and Compliance
Local councils across Australia have stringent requirements for vehicle access and circulation, governed by Australian Standards (such as AS 2890.1). A professional swept path analysis provides objective, visual evidence that your design complies with these non-negotiable standards. Submitting a DA without this documentation often leads to:
-
Immediate requests for information (RFIs), causing significant project delays.
-
Conditions of consent that require expensive, post-approval design changes.
-
Outright rejection of the Development Application.
Ensuring Site Safety and Functionality
Beyond compliance, a swept path analysis is essential for verifying the practical functionality and safety of your site. The assessment confirms that vehicles can manoeuvre without conflict, preventing common and dangerous operational flaws. This includes ensuring:
-
Cars and service vehicles can navigate ramps and parking areas without striking columns, walls, or kerbs.
-
Emergency vehicles, such as fire trucks and ambulances, have clear and unobstructed access to all necessary points on the site.
-
Waste collection and delivery vehicles can enter, service the site, and exit efficiently and in a forward direction.
Avoiding Costly Design Flaws and Revisions
Identifying an access issue on a CAD drawing is a simple fix. Identifying it during or after construction can be a financial disaster. A proactive vehicle swept path analysis flags design problems at the earliest stage, preventing expensive structural changes like moving columns, widening concrete ramps, or demolishing and rebuilding kerbs. This foresight saves substantial time and money, protecting your project budget from unforeseen rectification works. Ensure your design is compliant from the start. Contact us.
The Swept Path Analysis Process: A Step-by-Step Guide for Clients
Understanding the process for a professional vehicle swept path analysis ensures a smooth and efficient engagement. Our methodology is designed for clarity and precision, providing developers and architects with the definitive information required for council approval. The process is a collaborative effort with clear responsibilities for both the client and the traffic engineer, typically concluding within a few business days from receiving the necessary information.
Step 1: Project Briefing & Information Gathering
This initial stage is critical for establishing the parameters of the assessment. The client’s role is to provide a clear brief and the necessary technical drawings.
-
Client Provides Plans: The most important requirement is the provision of architectural site plans in a CAD format, specifically a DWG file. This allows our engineers to work directly with accurate, scaled drawings.
-
Define Design Vehicles: We consult with you to determine the specific ‘design vehicles’ that must be assessed. These are often stipulated by local council development control plans (DCPs) or are based on the site’s function, such as a B99 design car for residential apartments or a Single Rigid Vehicle (SRV) for waste collection.
-
Clarify Scope: We confirm which specific movements require analysis, for example, site entry and exit, access to loading docks, or navigation within a basement car park.
Step 2: The Technical Analysis
Once we have the required information, our experienced traffic engineers conduct the technical assessment using industry-standard software.
-
Software Simulation: The client-provided DWG drawings are imported into specialised software (e.g., AutoTURN), which accurately models vehicle movements.
-
Manoeuvre Testing: We simulate the chosen design vehicle navigating the designated paths on your site plan. This includes all critical forward and reverse movements to test for compliance and functionality.
-
Conflict Identification: The purpose of the analysis is to identify any potential conflicts. This includes clashes with physical objects like walls, columns, kerbs, or other parked vehicles, ensuring the design is safe and practical.
Step 3: Reporting and Deliverables
The final stage involves compiling the findings into a clear, professional report suitable for submission to council or certifying authorities.
-
Swept Path Diagrams: You will receive a set of scaled drawings showing the vehicle swept path plans overlaid on your architectural design. These diagrams provide clear visual evidence of compliance.
-
Summary Report: A concise report is prepared that outlines the methodology, the design vehicles assessed, and a summary of the findings.
-
Compliance Statement: The report includes a definitive statement on whether the proposed design complies with the relevant Australian Standards, primarily AS 2890.1 (for car parking facilities) and AS 2890.2 (for commercial vehicle facilities).
-
Recommendations: If any non-compliant areas are identified, we provide clear, actionable recommendations for design modifications to achieve compliance.
Common Applications and Required Design Vehicles
Vehicle swept path analysis is not a theoretical exercise; it is a practical necessity across a vast range of development projects. The specific design vehicle and the complexity of the assessment depend entirely on the proposed land use. Demonstrating compliant access for all required vehicles is a critical step in securing development approval from council.
Car Parks (AS 2890.1)
For any development incorporating car parking, compliance with Australian Standard AS 2890.1 is mandatory. Swept path diagrams are essential for verifying that the layout functions safely and efficiently for standard passenger cars.
-
Manoeuvring in Aisles: Assessing access into and out of tight parking spaces, particularly those adjacent to columns or walls.
-
Ramp Circulation: Verifying that vehicles can safely navigate ramps between parking levels without encroaching on opposing lanes or structural elements.
-
Design Vehicles: Utilising the B85 (85th percentile car) or B99 (99th percentile car) design vehicles as specified by the standard for residential apartments, commercial buildings, and shopping centres.
Loading Docks and Service Bays (AS 2890.2)
Industrial and retail developments depend on efficient logistics. We model the movements of heavy vehicles to ensure service areas are functional and meet the requirements of AS 2890.2.
-
Design Vehicles: Modelling large trucks, from a 12.5m Single Unit Truck (SUT) to a 19m Articulated Vehicle (AV), depending on the operational needs of the site.
-
Site Access: Checking the full path from the public street network, through the site entry, and into the loading dock area.
-
Docking Manoeuvres: Simulating the complex reversing and turning movements required for vehicles to safely approach and depart the dock. This is crucial for warehouses, distribution centres, supermarkets, and industrial facilities.
Specialised Vehicle Access
Beyond standard cars and trucks, many developments must accommodate specific service vehicles. Local councils frequently condition development approvals on proven access for these vehicles.
-
Waste Collection Vehicles: Assessing the ability for council or private waste trucks to access and service bin storage areas, which often involves tight, low-speed turns.
-
Emergency Vehicles: Ensuring fire trucks and other emergency vehicles have unobstructed access to the site as required by planning schemes and building codes.
-
Buses and Coaches: Required for developments such as schools, hotels, tourist facilities, and transport depots.
-
Car Transporters: A specific requirement for car dealerships and service centres to ensure transporters can deliver inventory safely.
A comprehensive vehicle swept path analysis ensures your design is compliant, functional, and avoids costly post-construction modifications. Our experienced consultants have assessed vehicle access for all these applications and more. For expert assessment of your project plans, contact ML Traffic Engineers.
How to Choose the Right Traffic Consultant for Your Analysis
Understanding the technical requirements of a vehicle swept path analysis is only the first step. The success of your development application often depends on the competence of the professional you hire to perform it. Selecting the right traffic engineering consultant is a critical decision that ensures compliance, avoids costly delays, and provides practical solutions for your project. A thorough assessment from a qualified expert provides the evidence needed for council approval.
Verify Experience and Qualifications
Not all consultants are created equal. When engaging a professional, ensure they are a qualified traffic engineer, not simply a drafter with access to software. An experienced engineer provides critical analysis and problem-solving, which is essential for a successful outcome. Look for a firm with a proven track record of getting projects approved by local councils across Australia.
-
Relevant Experience: Have they worked on developments similar to yours?
-
Professional Credentials: Are they a Registered Professional Engineer (e.g., RPEQ in Queensland)?
-
Council Approvals: Can they provide examples of successful reports submitted to your local council?
Expertise in Australian Standards and Software
A competent consultant must have an in-depth, working knowledge of Australian Standards, particularly AS 2890.1 for off-street parking and AS 2890.2 for commercial vehicle facilities. They should be proficient with industry-standard software like AutoTURN to produce an accurate vehicle swept path analysis. Critically, a true expert will advise you on the correct design vehicle for your site based on council requirements and likely usage, rather than simply asking you to choose one.
Look for Clear Communication and Reporting
The final report should be a clear, concise document that is easily understood by you, your architect, and the council planner. A good consultant can explain complex technical issues in plain English and focuses on providing workable solutions, not just identifying problems. They should be accessible and able to answer your questions directly, ensuring you understand the implications of the analysis for your design. This level of service guarantees that the person with the expertise is the one guiding your project from start to finish.
At ML Traffic, our experienced engineers handle your project directly. Get a quote.
Secure Your Development Approval with Professional Swept Path Analysis
As we’ve detailed, a meticulous swept path analysis is a critical requirement for securing council approval and ensuring your project’s long-term safety and functionality. The success of this assessment hinges on correctly applying Australian Standards, such as AS 2890.1 and AS 2890.2, and selecting the appropriate design vehicles for your site.
Navigating these technical requirements demands specialist expertise. At ML Traffic Engineers, we provide the professional vehicle swept path analysis needed to satisfy council requirements. With over 15 years of experience working directly with Australian councils, our senior traffic engineers possess in-depth expertise in AS 2890.1 and AS 2890.2. We ensure every project receives their direct attention, guaranteeing a compliant and robust assessment for your DA submission.
Avoid costly delays and ensure your design is right the first time. Get a professional swept path analysis for your DA submission and let our expertise streamline your approval process.
Frequently Asked Questions About Vehicle Swept Path Analysis
What is a ‘design vehicle’ and how is it chosen?
A ‘design vehicle’ is a standardised vehicle profile used in software to simulate turning manoeuvres. The selection is determined by the development’s intended use and local council requirements, often specified by Australian Standards AS 2890.1 and AS 2890.2. For example, a residential car park will be assessed using a B99 passenger vehicle, whereas an industrial loading dock will be tested against a 19m semi-trailer or a large rigid vehicle to ensure appropriate access.
How much does a vehicle swept path analysis typically cost in Australia?
The cost for a professional swept path analysis in Australia generally ranges from A$500 to A$2,000, plus GST. The final price depends on the project’s complexity, including the number of different design vehicles required and the intricacy of the manoeuvres being assessed. A simple residential driveway access check will be at the lower end, while a large commercial site with loading docks and waste collection routes will require a more detailed assessment and a higher fee.
Can swept path analysis be done for an existing site with access problems?
Yes. A vehicle swept path analysis is a highly effective diagnostic tool for existing sites experiencing access or safety issues. By modelling the movements of specific vehicles, we can precisely identify the cause of problems, such as delivery trucks striking kerbs or being unable to access loading bays. The analysis provides the technical evidence needed to design and verify effective, compliant solutions, such as modifying kerb lines or implementing new traffic management procedures.
What happens if the analysis shows my design is non-compliant?
A non-compliant finding is a common part of the iterative design process. If the analysis reveals that a vehicle cannot safely navigate the proposed layout, our role as traffic engineering consultants is to provide clear, actionable recommendations to achieve compliance. This may involve specific adjustments to the design, such as widening an accessway, increasing a corner radius, or reconfiguring a parking layout. We work with your architect to find a practical solution before resubmission.
How long does it take to get a swept path analysis report?
Our standard turnaround time for a swept path analysis report is typically 3 to 5 business days from the time we receive all necessary project information. This includes the final architectural plans in a suitable electronic format (e.g., .dwg or .pdf) and confirmation of the design vehicles to be assessed. We understand that development projects often operate on tight deadlines and can accommodate urgent requests where possible. Clear communication ensures a timely and efficient process.
Is a swept path analysis the same as a Traffic Impact Assessment?
No, they are distinct but related services. A swept path analysis is a specific technical assessment focused on vehicle manoeuvrability and clearance within a site’s boundaries, such as car parks, driveways, and loading docks. A Traffic Impact Assessment (TIA) is a much broader study that evaluates the effect of a development on the external public road network, assessing traffic generation, intersection capacity, and road safety. A swept path plan is often a required component of a TIA.
